K-0800-0500-9400A-3 - Datasheet
ExaktKey
Category Information

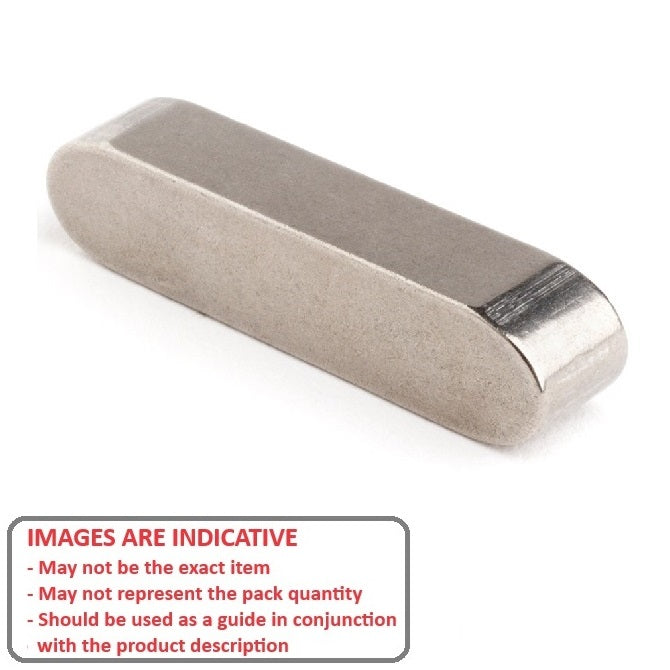

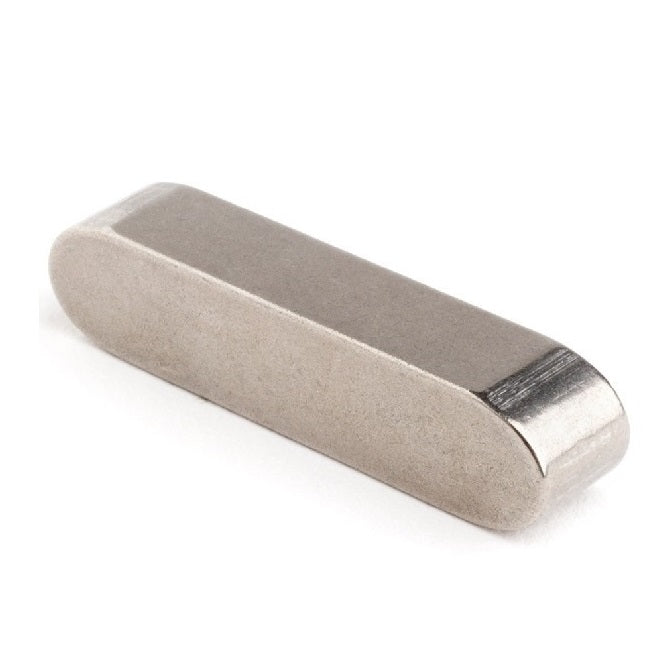

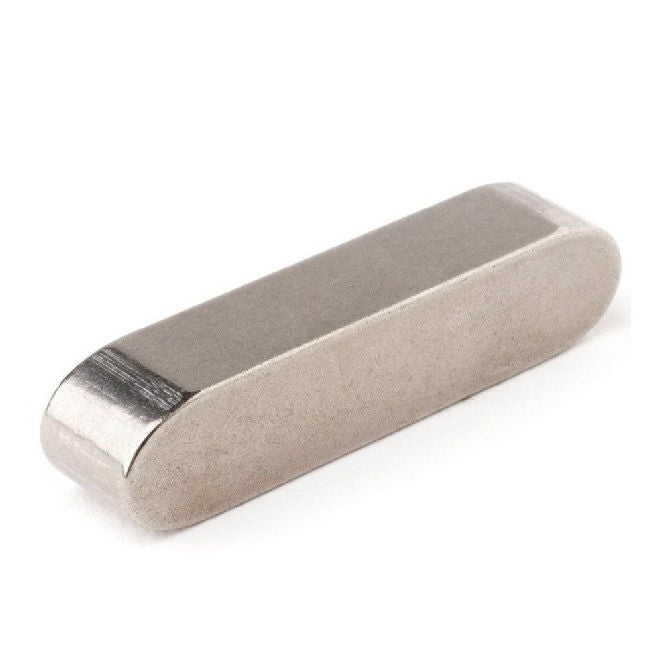

Keys - Machine - Stainless SteelStainless Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
8.00
mm
+ 0 / - 0.076
(Equiv. 0.315 in.) - Height (h)
5.00
mm
+ 0 / - 0.051
(Equiv. 0.197 in.) - Length (L)
94.00
mm
+ / - 0.25
(Equiv. 3.701 in.) - Tolerance Type Standard Undersized
- End Type A (Rounded Ends)
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor 720805-094
- 720805094
