Miniature Bearings Australia
K-0635-0635-5715AO-C - Datasheet
ExaktKey
Category Information

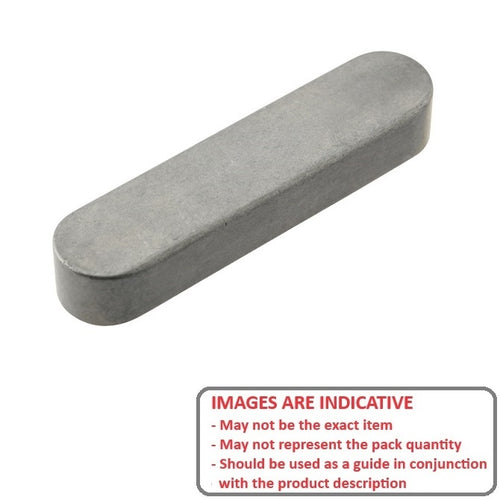

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
6.35
mm
+ 0.051 / - 0.00
(Equiv. 0.25 in.) - Height (h)
6.35
mm
+ 0.051 / - 0.00
(Equiv. 0.25 in.) - Length (L)
57.15
mm
+ / - 0.25
(Equiv. 2.25 in.) - Finish Plain
- Tolerance Type Oversized
- End Type A (Rounded Ends)
- Material Carbon Steel C45
