GHK1200-2000-080 - Datasheet
ENQUIRE
Category Information
Keys - Gib Head - SteelSteel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.
Product Data

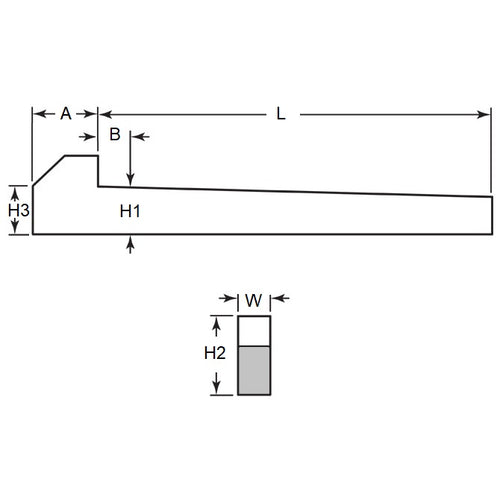

- Nominal Key Height (H1) : 12.000 mm
- Width (W) 20.000 mm
- Length (L) 80.0 mm
- Head Height (h2) Approx. 20.0 mm
- Taper 1:100
- Standard DIN6887
- Head Length (Approx) (A) 18.000 mm
- Material Cold Finished Steel
