CLJ-08.00-M8L - Datasheet
Iglidur
Category Information

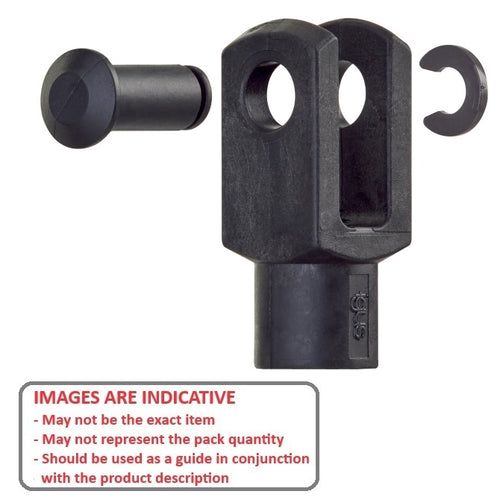

Joints - Clevis - PlasticPlastic Clevis Joints. Use with plastic rod ends - Includes pin and clip. See also yokes.
- Comes with clevis pin and retaining clip.
- Corrosion Resistant, Lightweight.
- High Tensile Strength (Shown in table as Short Term / Long Term).
- Vibration Dampening / Noise Dampening.
- (1) Tensile Strengths shown are Maximum Static axial in Newtons.

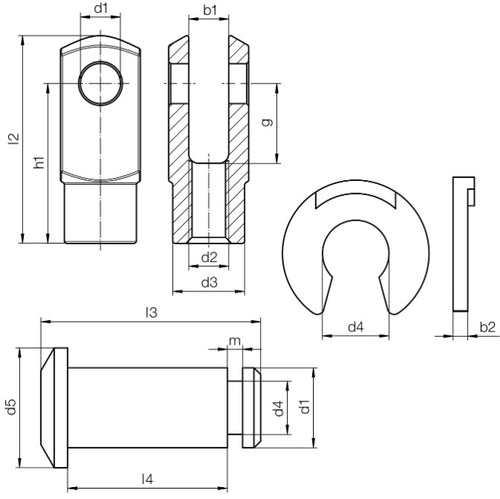

Product Data
- Hole Diameter (d1)
:
8.0
mm
+0.0 / +0.1
(Equiv. 0.315 in.) - Depth from Centre (g)
16.0
mm
(Equiv. 0.63 in.) - Top Width (a1 x a2)
16.0 x 16.0
mm
(Equiv. 0.63 in.) - Opening (b1) 8.0 mm
- Thread M8 x 1.25
- Base Diameter (d3) 14.0 mm
- Lengths (l1 / l2 / l3) 41.6 / 32.0 / 12.0 mm +0.5 / -0.5
- Thread Direction Left Hand
- Intermit. Tensile Strength (1) 2700 N
- Contin. Tensile Strength (1) 1350 N
Product Compliance and Data
Additional Resources
Cross References
- Igus GELM-08
- Igus GELMK-08
- GELMK08
- GELM08
