CLJ-16.00-M16L - Datasheet
Iglidur
Category Information
Joints - Clevis - PlasticPlastic Clevis Joints. Use with plastic rod ends - Includes pin and clip. See also yokes.

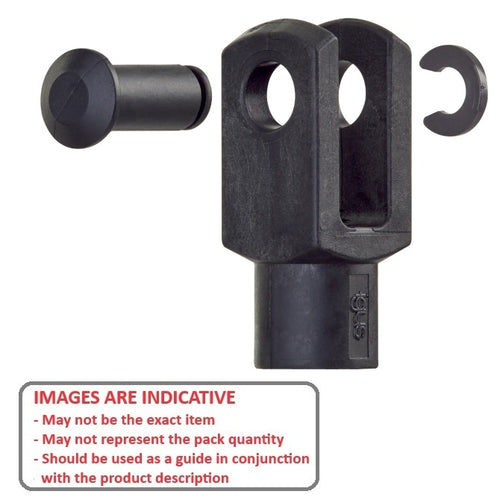

- Comes with clevis pin and retaining clip.
- Corrosion Resistant, Lightweight.
- High Tensile Strength (Shown in table as Short Term / Long Term).
- Vibration Dampening / Noise Dampening.
- (1) Tensile Strengths shown are Maximum Static axial in Newtons.
Product Data
- Hole Diameter (d1)
:
16.0
mm
+0.0 / +0.1
(Equiv. 0.63 in.) - Depth from Centre (g)
32.0
mm
(Equiv. 1.26 in.) - Top Width (a1 x a2)
32.0 x 32.0
mm
(Equiv. 1.26 in.) - Opening (b1) 16.0 mm
- Thread M16 x 2.00
- Base Diameter (d3) 26.0 mm

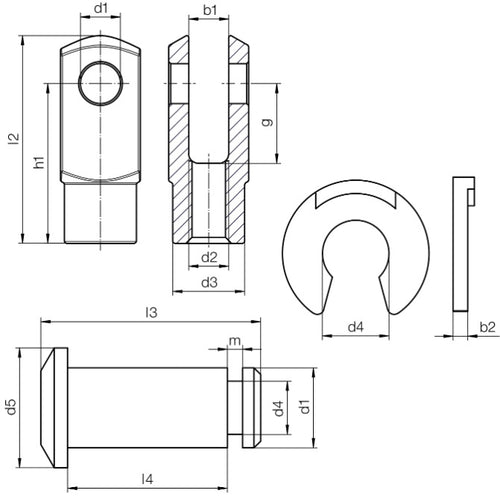

- Lengths (l1 / l2 / l3) 81.90 / 64.0 / 24.0 mm +0.5 / -0.5
- Thread Direction Left Hand
- Intermit. Tensile Strength (1) 7500 N
- Contin. Tensile Strength (1) 3750 N
