CLJ-10.00-M10L - Datasheet
Iglidur
Category Information

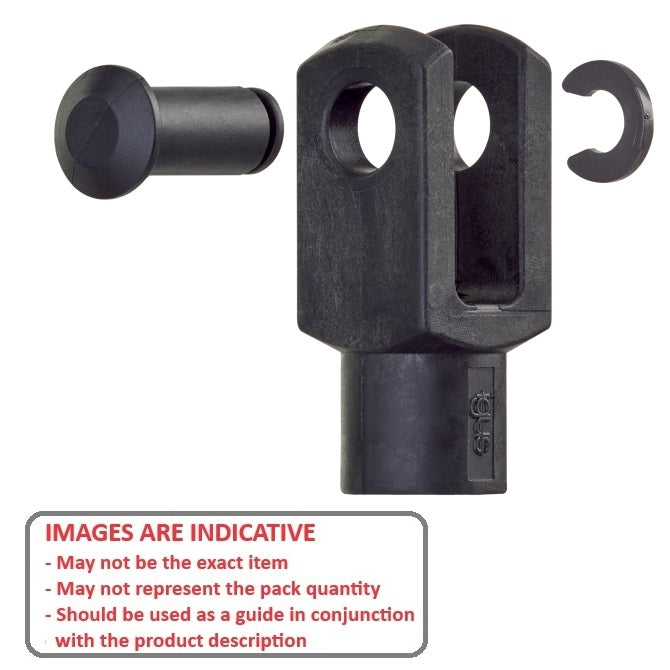

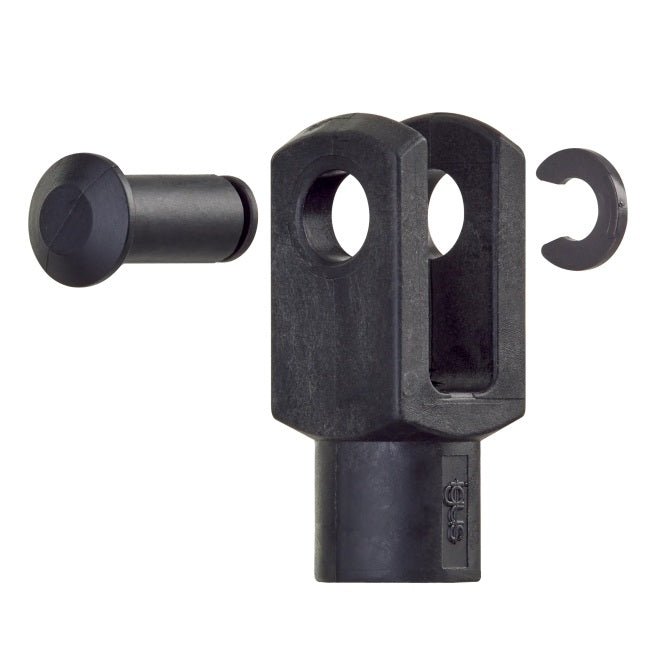

Joints - Clevis - PlasticPlastic Clevis Joints. Use with plastic rod ends - Includes pin and clip. See also yokes.
- Comes with clevis pin and retaining clip.
- Corrosion Resistant, Lightweight.
- High Tensile Strength (Shown in table as Short Term / Long Term).
- Vibration Dampening / Noise Dampening.
- (1) Tensile Strengths shown are Maximum Static axial in Newtons.

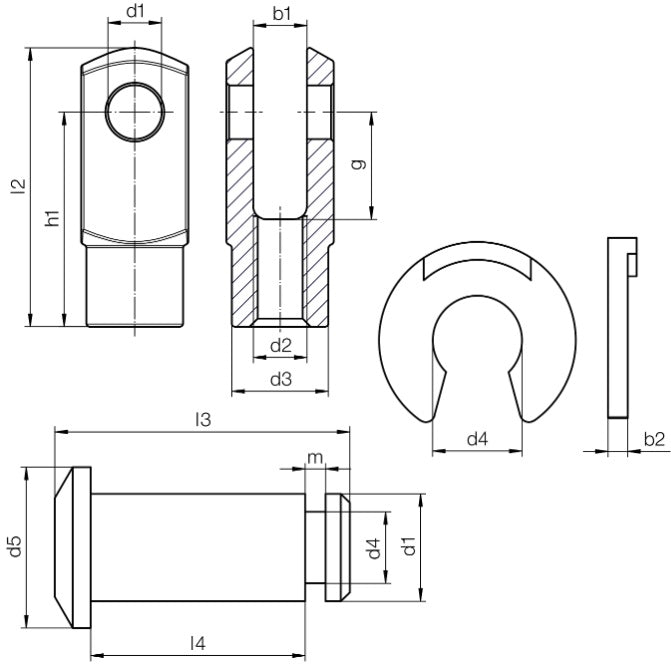

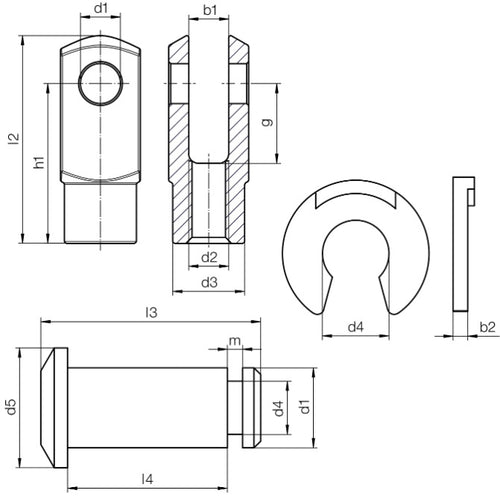

Product Data
- Hole Diameter (d1)
:
10.0
mm
+0.0 / +0.1
(Equiv. 0.394 in.) - Depth from Centre (g)
20.0
mm
(Equiv. 0.787 in.) - Top Width (a1 x a2)
20.0 x 20.0
mm
(Equiv. 0.787 in.) - Opening (b1) 10.0 mm
- Thread M10 x 1.50
- Base Diameter (d3) 18.0 mm
- Lengths (l1 / l2 / l3) 51.30 / 40.0 / 15.0 mm +0.5 / -0.5
- Thread Direction Left Hand
- Intermit. Tensile Strength (1) 4700 N
- Contin. Tensile Strength (1) 2350 N
