SI-022-032 - Datasheet
MBA
Category Information

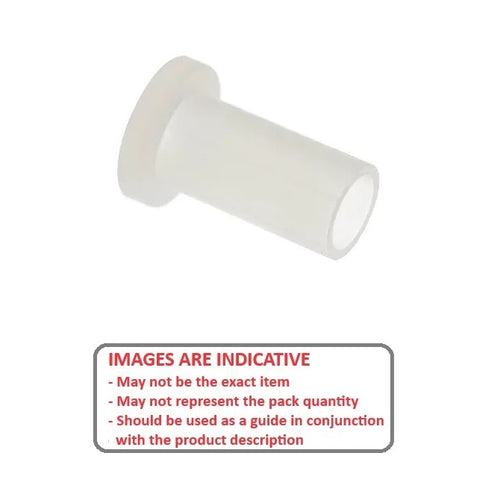

Insulators - ScrewScrew Insulators. Non-conductive, non-corrosive, light weight, self-sealing and self-locking.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data

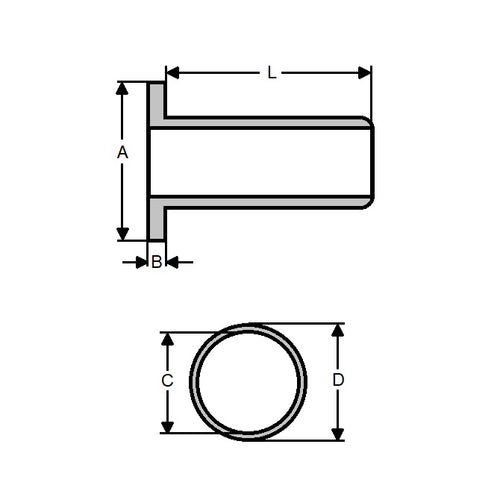

- Thread Size : 2 UNC/UNF (2.18mm)
- Shank Length (L) 3.175 mm
- Bore Size (C) 2.286 mm
- Shank Diameter (D) 3.048 mm
- Flange Diameter (A) 4.597 mm
- Flange Thickness (B) 1.191 mm
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
Cross References
- 91145A110
- A9M700612
- A9M70-0612
