ID-P030H-28-012-064R - Datasheet
MBA
Category Information

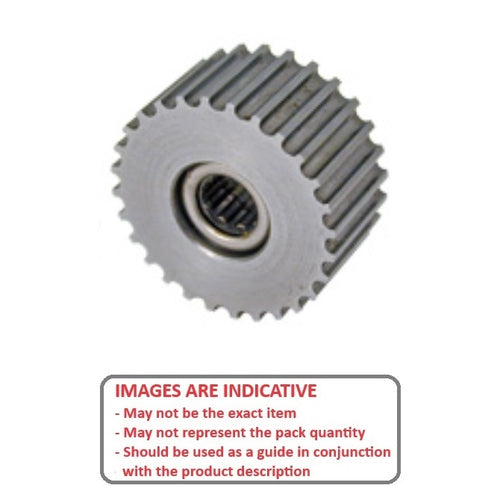

Pulleys - Timing IdlerTiming Idler Pulleys. Complete with Needle Roller Bearing.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- The timing belt idler spins on the shaft rather than transimitting torque from the belt. This allows for an adjustable idler shaft to be able to modify the tension of the timing system.
- Can be used directly on shafts with a surface hardness of RC 58 or higher.
- Can be run on hardened Inner Rings.
- See also Drive Tighteners. 12.7mm Bore models can be run directly on the drive tighteners.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

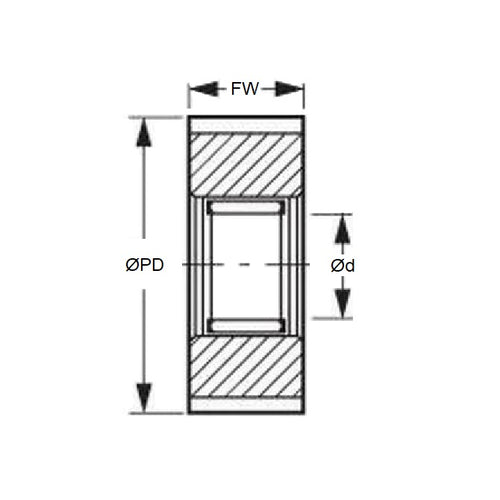

- Belt Type : HTD 3mm
- O.D.
26.00
mm
(Equiv. 1.024 in.) - Bore (B)
6.350
mm
(Equiv. 0.25 in.) - Face Width (F) 12.70 mm
- Number of Teeth 28
- Bearing Type Needle Roller
- Style Plain
- Flange Diameter None
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- A 6Z 9-008283H
- A6Z9008283H
- A6Z9-008283H
