BB-064-L280 - Datasheet
Iglidur
Category Information

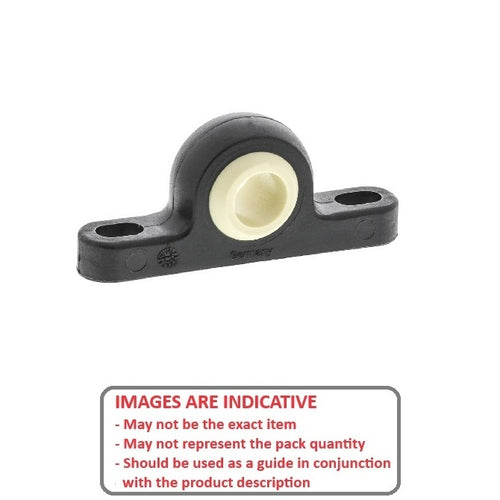

Housing and Bearing Assembly - Pillow Block - Thermoplastic - W300W300 Thermoplastic Pillow Block Housing and Bearing Assembly. Iglide L280 / Igus W300 Ball with Thermoplatic Body.
- Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
- Pillo block type are a pedestal mounted with two bolt holes through the base.
- Maintenance Free, Lightweight, Self-Lubricating.
- Compensates for alignment errors.
- Temperature Range -40 oC to +130 oC.
- Max. Static Tensile Strength is Long Term. Info for Short Term also available.

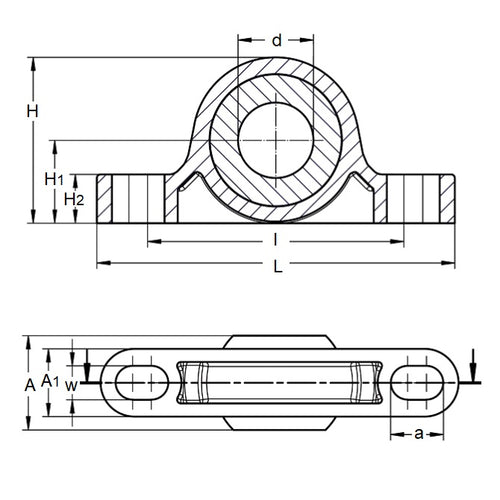

Product Data
- Bore Diameter (d)
:
6.350
mm
+ 0.025 / + 0.083
(Equiv. 0.25 in.) - Overall Length (L)
44.450
mm
(Equiv. 1.75 in.) - Height (H)
19.810
mm
(Equiv. 0.78 in.) - Width (W) 6.350 mm
- Overall Width (W2) 9.530 mm
- Distance Base to Centre 9.910 mm
- Max. Angle of Pivot 25 °
- Max. Static Tensile Strength 250 N
- Material (Body) Thermoplastic
- Material (Ball) L280 Polymer
Product Compliance and Data
Additional Resources
Cross References
- Igus KSTI-04
- S61GPB-025038
- S61GPB025038
- KSTI04
