BB-111-L280 - Datasheet

Iglidur

Category Information

Housing and Bearing Assembly - Pillow Block - Thermoplastic - W300

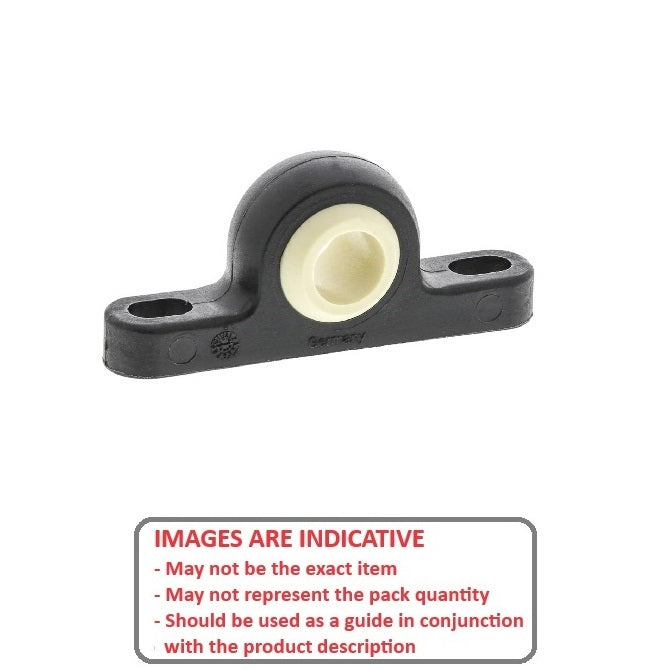

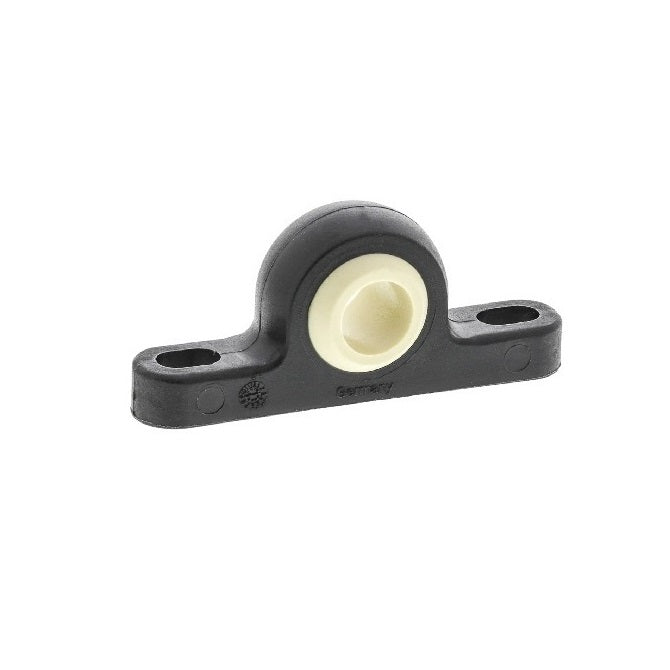

W300 Thermoplastic Pillow Block Housing Assembly. Iglide L280 / Igus W300 Ball with Thermoplatic Body.

  • Maintenance Free, Lightweight, Self-Lubricating.
  • Compensates for alignment errors.
  • Temperature Range -40 oC to +130 oC.
  • Max. Static Tensile Strength is Long Term. Info for Short Term also available.

Product Data

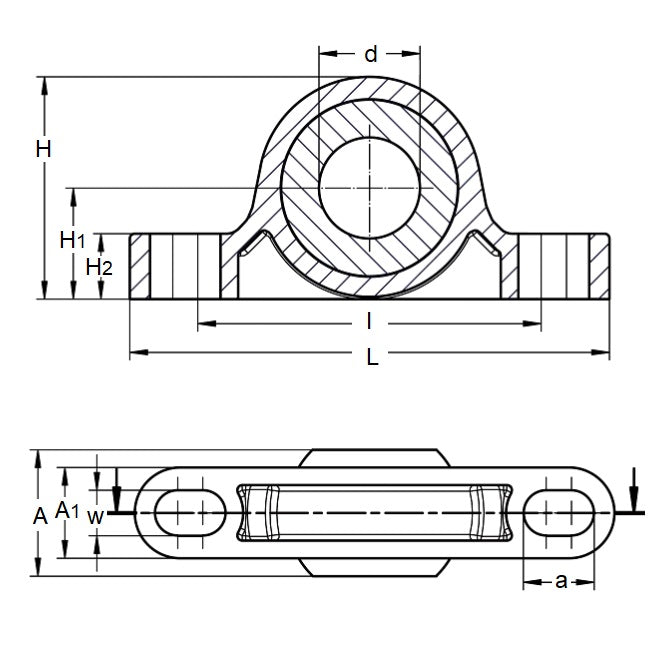

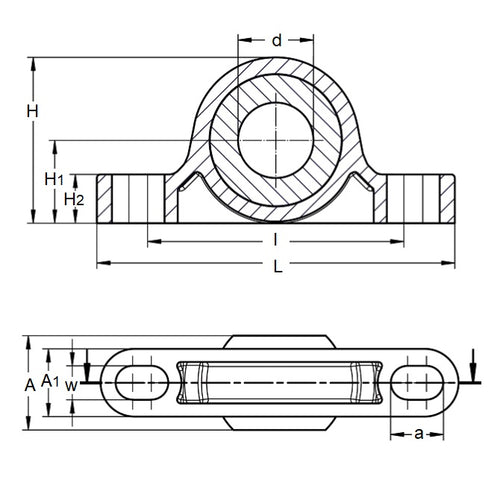

  • Bore Diameter (d) : 11.110 mm + 0.032 / + 0.102
    (Equiv. 0.437 in.)
  • Overall Length (L) 63.500 mm
    (Equiv. 2.5 in.)
  • Height (H) 28.960 mm
    (Equiv. 1.14 in.)
  • Width (W) 10.310 mm
  • Overall Width (W2) 14.270 mm
  • Distance Base to Centre 14.480 mm
  • Max. Angle of Pivot 22 °
  • Max. Static Tensile Strength 350 N
  • Material (Body) Thermoplastic
  • Material (Ball) L280 Polymer
Country of Origin: DE

Product Compliance and Data

Additional Resources

    Cross References

    • Igus KSTI-07
    • KSTI07
