F-08-W300 - Datasheet
Iglidur
Category Information
Housings - Bearing - Flanged - Square - W300W300 Square Flanged Bearing Housings. With integral self aligning plain bearing.
- An expanded range may be available on special order. Please enquire.
- Housing : Igumid G.
- Ball : Highly wear resistant Iglidur W300.
- Temperature range -40 oC to +180 oC
Product Data

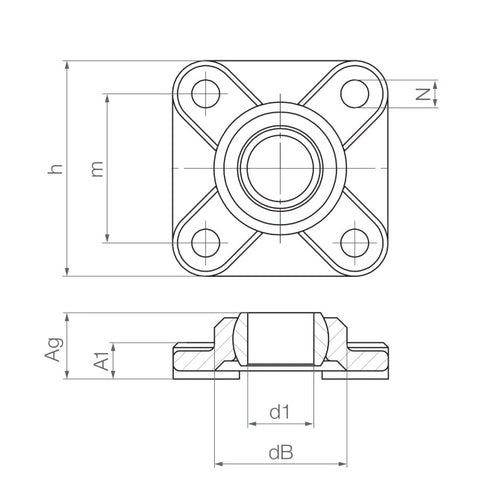

- Bore (d1)
:
8.00
mm
+ 0.025 / + 0.083
(Equiv. 0.315 in.) - Base Length (L)
33.00
mm
(Equiv. 1.299 in.) - Width - Assembled (Ag)
10.50
mm
(Equiv. 0.413 in.) - Base Width (A1) 5.50 mm
- Bolt Hole Centres (J) 22.00 mm
- Overall Height (Ag) 10.5 mm
- To Suit Bearing Integral
- Bolt Hole Size (N) 4.3 mm
- Material W300 Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus EFSM-08
- EFSM08
