F-16-W300 - Datasheet
Iglidur
Category Information

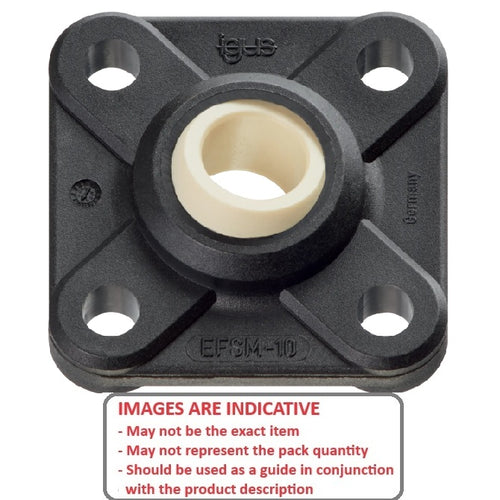

Housings - Bearing - Flanged - Square - W300W300 Square Flanged Bearing Housings. With integral self aligning plain bearing.
- An expanded range may be available on special order. Please enquire.
- Housing : Igumid G.
- Ball : Highly wear resistant Iglidur W300.
- Temperature range -40 oC to +180 oC
Product Data

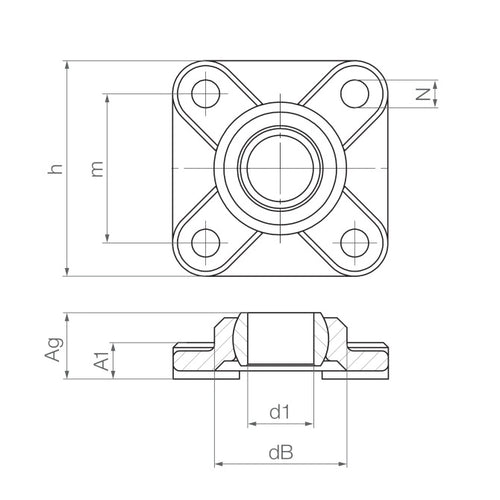

- Bore (d1)
:
16.00
mm
+ 0.032 / + 0.102
(Equiv. 0.63 in.) - Base Length (L)
52.00
mm
(Equiv. 2.047 in.) - Width - Assembled (Ag)
16.50
mm
(Equiv. 0.65 in.) - Base Width (A1) 9.00 mm
- Bolt Hole Centres (J) 36.00 mm
- Overall Height (Ag) 16.5 mm
- To Suit Bearing Integral
- Bolt Hole Size (N) 6.4 mm
- Material W300 Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus EFSM-16
- EFSM16
