F-10-W300 - Datasheet
Iglidur
Category Information

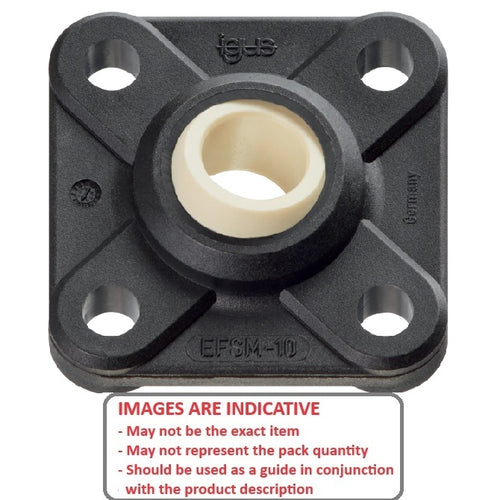

Housings - Bearing - Flanged - Square - W300W300 Square Flanged Bearing Housings. With integral self aligning plain bearing.
- An expanded range may be available on special order. Please enquire.
- Housing : Igumid G.
- Ball : Highly wear resistant Iglidur W300.
- Temperature range -40 oC to +180 oC

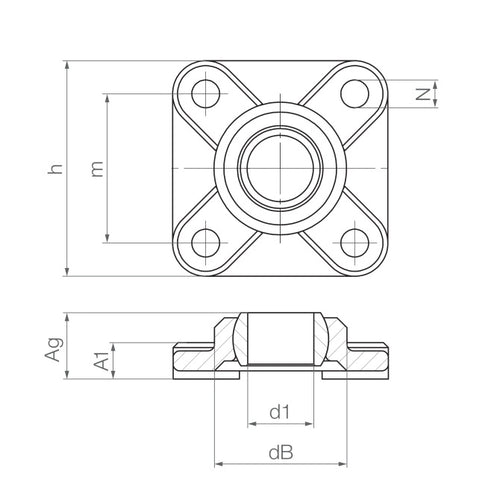

Product Data
- Bore (d1)
:
10.00
mm
+ 0.025 / + 0.083
(Equiv. 0.394 in.) - Base Length (L)
38.00
mm
(Equiv. 1.496 in.) - Width - Assembled (Ag)
12.00
mm
(Equiv. 0.472 in.) - Base Width (A1) 6.50 mm
- Bolt Hole Centres (J) 26.00 mm
- Overall Height (Ag) 12.0 mm
- To Suit Bearing Integral
- Bolt Hole Size (N) 5.3 mm
- Material W300 Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus EFSM-10
- EFSM10
