WGS2-150-030-080-R-ACS - Datasheet
MBA
Category Information

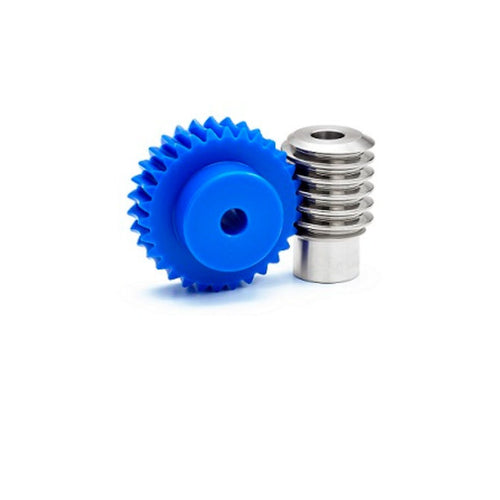

Gears - Worm Sets - Module 1.5Module 1.5 Worm Sets Gears. This is the main category in this series
- Acetal gear and steel worm sets.
- Metric sets only.
- An expanded range may be available on special order. Please enquire.
Product Data
- Pitch : Module 1.5
- Teeth 30
- Bore (dd)
8.00
mm
(Equiv. 0.315 in.) - Direction Right Hand
- Ratio 30 to 1
- Lead Angle 2 Deg
- Face Width (b) 15.00 mm
- Hub Diameter 30.00 mm
- Centre Distance (A) 35 mm
- Gear Length (l) 25 mm
- Hub Projection (lh) 10 mm
- Tip Diameter (da) 50.3 mm
- Material Polyacetal and Steel
Product Compliance and Data
Additional Resources
Cross References
- G15BP30R2
