WGS2-150-020-060-R-ACS - Datasheet
MBA
Category Information

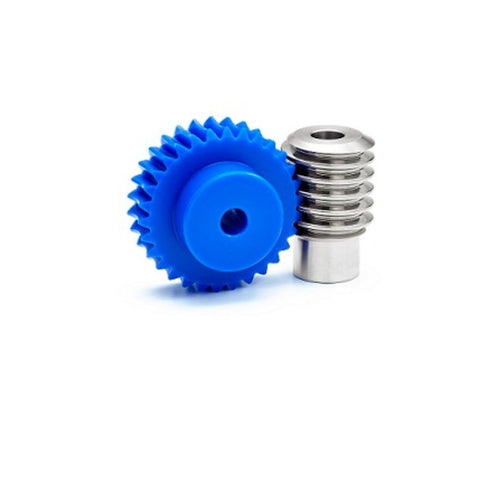

Gears - Worm Sets - Module 1.5Module 1.5 Worm Sets Gears. This is the main category in this series
- Acetal gear and steel worm sets.
- Metric sets only.
- An expanded range may be available on special order. Please enquire.
Product Data
- Pitch : Module 1.5
- Teeth 20
- Bore (dd)
6.00
mm
(Equiv. 0.236 in.) - Direction Right Hand
- Ratio 20 to 1
- Lead Angle 2 Deg
- Face Width (b) 15.00 mm
- Hub Diameter 25.00 mm
- Centre Distance (A) 27.5 mm
- Gear Length (l) 25 mm
- Hub Projection (lh) 10 mm
- Tip Diameter (da) 35.3 mm
- Material Polyacetal and Steel
Product Compliance and Data
Additional Resources
Cross References
- G15BP20R2
