WGS2-100-020-050-R-ACS - Datasheet

MBA

Category Information

Gears - Worm Sets - Module 1

Module 1 Worm Sets Gears. This is the main category in this series

  • Acetal gear and steel worm sets.
  • Metric sets only.
  • An expanded range may be available on special order. Please enquire.

Product Data

  • Pitch : Module 1.0
  • Teeth 20
  • Bore (dd) 5.00 mm
    (Equiv. 0.197 in.)
  • Direction Right Hand
  • Ratio 20 to 1
  • Lead Angle 2 Deg
  • Face Width (b) 10.00 mm
  • Hub Diameter 17.00 mm
  • Centre Distance (A) 23 mm
  • Gear Length (l) 18 mm
  • Hub Projection (lh) 8 mm
  • Tip Diameter (da) 23.5 mm
  • Material Polyacetal and Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • G1BP20R2
    View full details

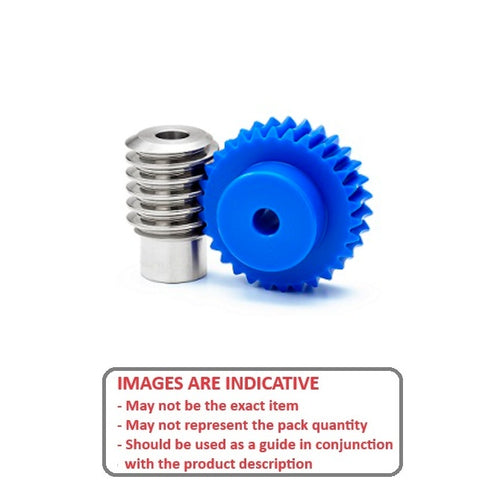

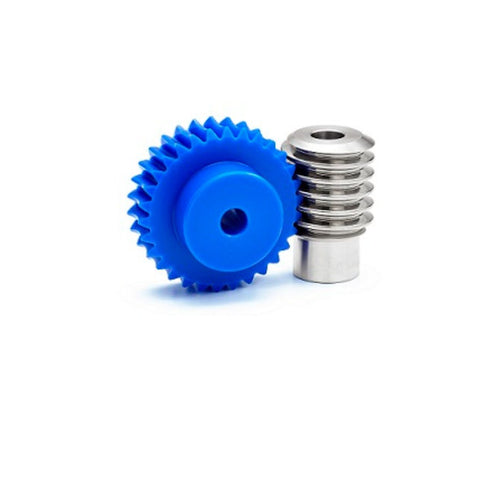

    WGS2-100-020-050-R-ACSDiagramWGS2-100-020-050-R-ACSImage
