WGS1-080-040-060-R-ACS - Datasheet
MBA
Category Information

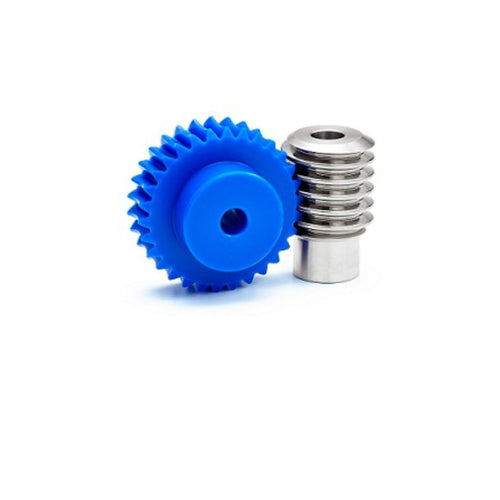

Gears - Worm Sets - Module 0.8Module 0.8 Worm Sets Gears. This is the main category in this series
- Acetal gear and steel worm sets.
- Metric sets only.
- An expanded range may be available on special order. Please enquire.
Product Data
- Pitch : Module 0.8
- Teeth 40
- Bore (dd)
6.00
mm
(Equiv. 0.236 in.) - Direction Right Hand
- Ratio 40 to 1
- Lead Angle 1 Deg
- Face Width (b) 6.00 mm
- Hub Diameter 20.00 mm
- Centre Distance (A) 21.2 mm
- Gear Length (l) 14 mm
- Hub Projection (lh) 8 mm
- Tip Diameter (da) 34.1 mm
- Material Polyacetal and Steel
Product Compliance and Data
Additional Resources
Cross References
- G80BP40R1
