WGS1-080-030-050-R-ACS - Datasheet
MBA
Category Information

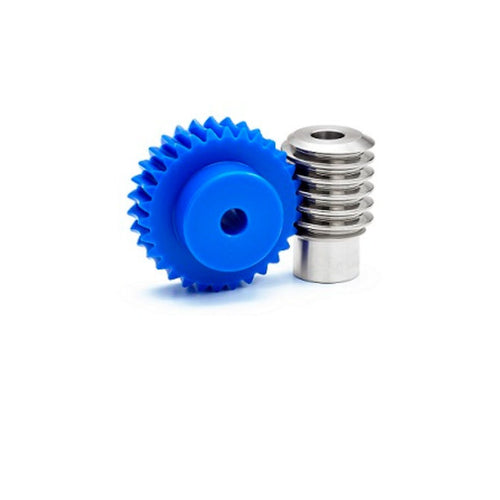

Gears - Worm Sets - Module 0.8Module 0.8 Worm Sets Gears. This is the main category in this series
- Acetal gear and steel worm sets.
- Metric sets only.
- An expanded range may be available on special order. Please enquire.
Product Data
- Pitch : Module 0.8
- Teeth 30
- Bore (dd)
5.00
mm
(Equiv. 0.197 in.) - Direction Right Hand
- Ratio 30 to 1
- Lead Angle 1 Deg
- Face Width (b) 6.00 mm
- Hub Diameter 18.00 mm
- Centre Distance (A) 17.2 mm
- Gear Length (l) 12 mm
- Hub Projection (lh) 6 mm
- Tip Diameter (da) 26.1 mm
- Material Polyacetal and Steel
Product Compliance and Data
Additional Resources
Cross References
- G80BP30R1
