WGS1-050-050-050-R-ACS - Datasheet
MBA
Category Information

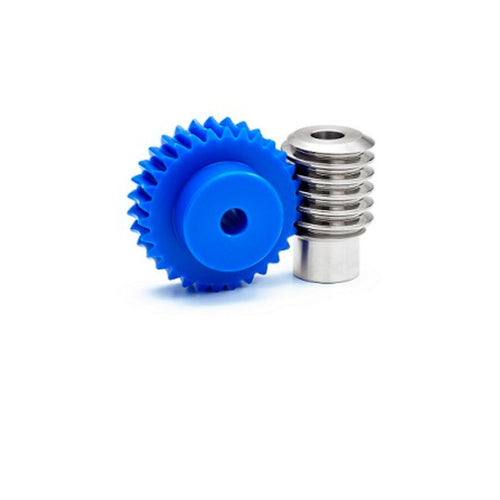

Gears - Worm Sets - Module 0.5Module 0.5 Worm Sets Gears. This is the main category in this series
- Acetal gear and steel worm sets.
- Metric sets only.
- An expanded range may be available on special order. Please enquire.
Product Data
- Pitch : Module 0.5
- Teeth 50
- Bore (dd)
5.00
mm
(Equiv. 0.197 in.) - Direction Right Hand
- Ratio 50 to 1
- Lead Angle 1 Deg
- Face Width (b) 5.00 mm
- Hub Diameter 20.00 mm
- Centre Distance (A) 17 mm
- Gear Length (l) 13 mm
- Hub Projection (lh) 8 mm
- Tip Diameter (da) 26.3 mm
- Material Polyacetal and Steel
Product Compliance and Data
Additional Resources
Cross References
- G50BP50R1
