WGS1-050-030-040-R-ACS - Datasheet
MBA
Category Information

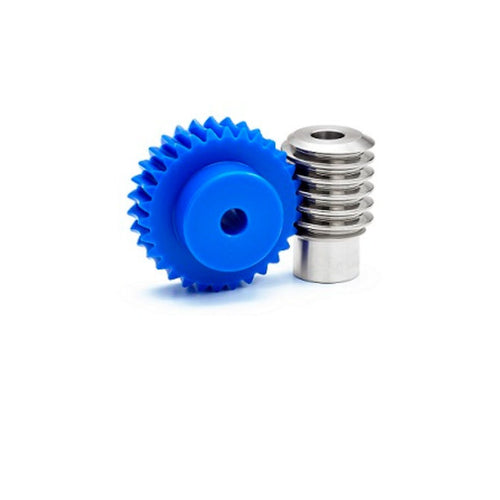

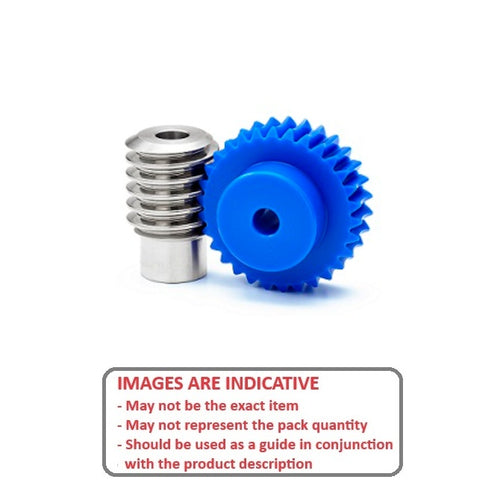

Gears - Worm Sets - Module 0.5Module 0.5 Worm Sets Gears. This is the main category in this series
- Acetal gear and steel worm sets.
- Metric sets only.
- An expanded range may be available on special order. Please enquire.
Product Data
- Pitch : Module 0.5
- Teeth 30
- Bore (dd)
4.00
mm
(Equiv. 0.157 in.) - Direction Right Hand
- Ratio 30 to 1
- Lead Angle 1 Deg
- Face Width (b) 5.00 mm
- Hub Diameter 12.00 mm
- Centre Distance (A) 12 mm
- Gear Length (l) 11 mm
- Hub Projection (lh) 6 mm
- Tip Diameter (da) 16.3 mm
- Material Polyacetal and Steel
Product Compliance and Data
Additional Resources
Cross References
- G50BP30R1
