G021B-021-M1-120-080P-C - Datasheet
MBA
Category Information

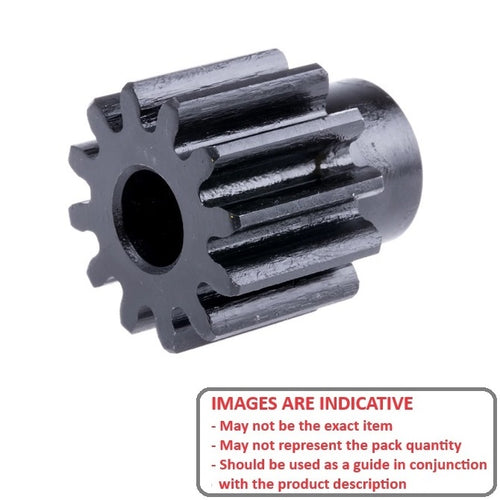

Gears - Spur - Hubbed - Module 1 - SteelSteel Module 1 Hubbed Spur Gears. PCD in mm = No. of Teeth. 20 Degree Pressure Angle
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1mm per tooth
- Module 1. Approximately 3.14mm between the teeth.
Product Data
- Number of Teeth : 21
- Pitch Circle Diameter (PD)
21.00
mm
(Equiv. 0.827 in.) - Bore (d)
8.00
mm
H7
(Equiv. 0.315 in.) - Face Width (FW) 12.00 mm
- Type Hubbed
- 18.00
- 8.00
- Locking Method None
- Hardness Unhardened
- Quality Commercial
- Material Carbon Steel S45C
Product Compliance and Data
Additional Resources
Cross References
- G021B021M1120080C
