G080B-080-M1-100-200P-C-PD - Datasheet
MBA
Category Information

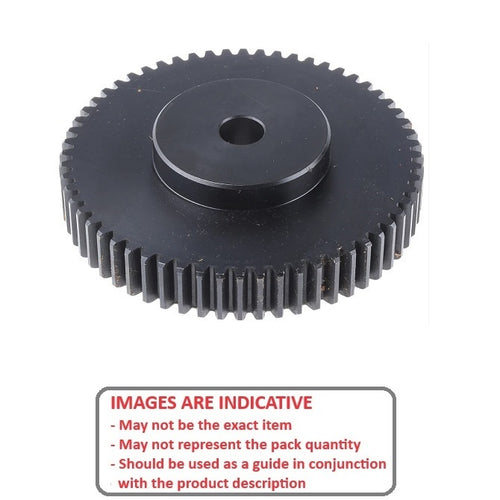

Gears - Spur - Hubbed - Module 1 - SteelSteel Module 1 Hubbed Spur Gears. PCD in mm = No. of Teeth. 20 Degree Pressure Angle
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1mm per tooth
- Module 1. Approximately 3.14mm between the teeth.
Product Data
- Number of Teeth : 80
- Pitch Circle Diameter (PD)
80.00
mm
(Equiv. 3.15 in.) - Bore (d)
20.000
mm
(Equiv. 0.787 in.) - Outside Diameter (OD) 82.000 mm
- Face Width (FW) 10.000 mm
- Type Hubbed
- 45.00
- 10.00
- Locking Method None
- Quality ISO 5 - Ground
- Material Steel AISI 4135
Product Compliance and Data
Additional Resources
Cross References
- G080B080M1100200CPD
