G020B-020-M1-100-080P-C-GD - Datasheet
MBA
Category Information

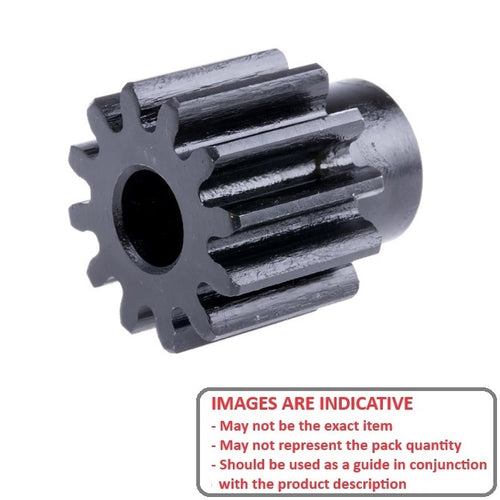

Gears - Spur - Hubbed - Module 1 - SteelSteel Module 1 Hubbed Spur Gears. PCD in mm = No. of Teeth. 20 Degree Pressure Angle
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1mm per tooth
- Module 1. Approximately 3.14mm between the teeth.
Product Data
- Number of Teeth : 20
- Pitch Circle Diameter (PD)
20.00
mm
(Equiv. 0.787 in.) - Bore (d)
8.000
mm
(Equiv. 0.315 in.) - Outside Diameter (OD) 22.000 mm
- Face Width (FW) 10.000 mm
- Type Hubbed
- 16.00
- 10.00
- Locking Method Set Screw
- Quality ISO 5 - Ground
- Material Steel AISI 4135
Product Compliance and Data
Additional Resources
Cross References
- G020B020M1100080CGD
