G100B-100-M1-080-120P-C-PD - Datasheet
MBA
Category Information

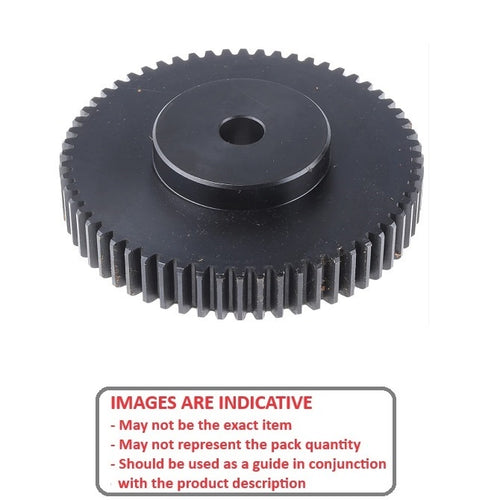

Gears - Spur - Hubbed - Module 1 - SteelSteel Module 1 Hubbed Spur Gears. PCD in mm = No. of Teeth. 20 Degree Pressure Angle
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1mm per tooth
- Module 1. Approximately 3.14mm between the teeth.
Product Data
- Number of Teeth : 100
- Pitch Circle Diameter (PD)
100.00
mm
(Equiv. 3.937 in.) - Bore (d)
12.000
mm
(Equiv. 0.472 in.) - Outside Diameter (OD) 102.000 mm
- Face Width (FW) 8.000 mm
- Type Hubbed
- 32.00
- 16.00
- Locking Method None
- Quality ISO 8 - ( AGMA 9 )
- Material Carbon Steel S45C
Product Compliance and Data
Additional Resources
Cross References
- G100B100M1080120CPD
