G025B-050-M05-050-060-B-P - Datasheet
MBA
Category Information

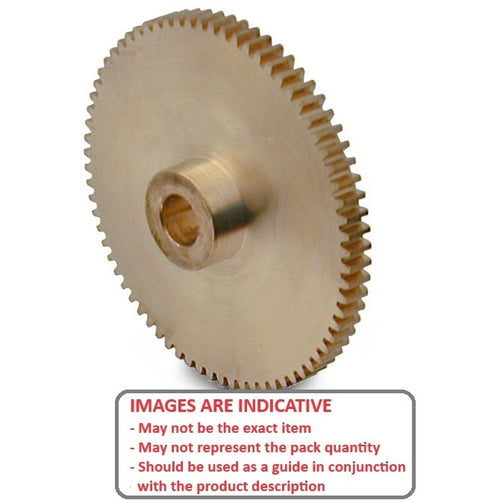

Gears - Spur - Hubbed - Module 0.5 - BrassBrass Module 0.5 Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.5. 20 Degree Pressure Angle.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 0.5mm per tooth
- Module 0.5. Approximately 1.57mm between the teeth.
Product Data
- Number of Teeth : 50
- Pitch Circle Diameter (PD)
25.00
mm
(Equiv. 0.984 in.) - Bore (d)
6.000
mm
(Equiv. 0.236 in.) - Outside Diameter (OD) 26.000 mm
- Face Width (FW) 5.000 mm
- Type Hubbed
- 15.00
- 7.00
- Locking Method None
- Quality ISO 8 - ( AGMA 9 )
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- G025B50M05050060BP
