G015B-015-M1-100-050F-CG - Datasheet
MBA
Category Information

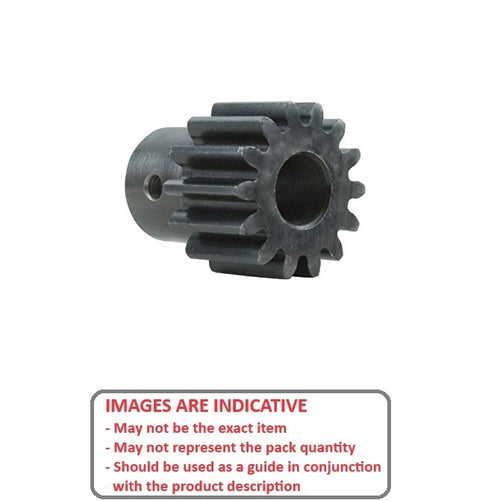

Gears - Spur - Hubbed - Module 1 - SteelSteel Module 1 Hubbed Spur Gears. PCD in mm = No. of Teeth. 20 Degree Pressure Angle
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1mm per tooth
- Module 1. Approximately 3.14mm between the teeth.

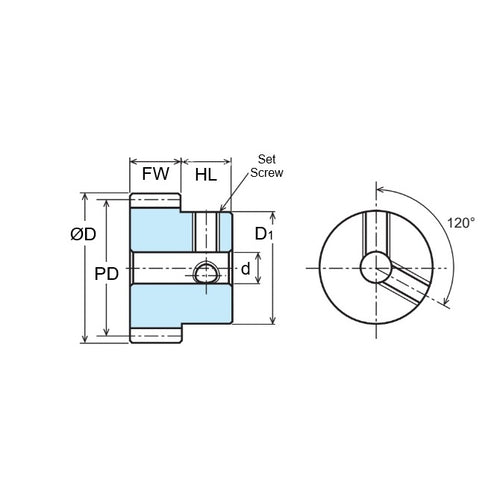

Product Data
- Number of Teeth : 15
- Pitch Circle Diameter (PD)
15.00
mm
(Equiv. 0.591 in.) - Bore (d)
5.000
mm
H7
(Equiv. 0.197 in.) - Outside Diameter (OD) 17.000 mm
- Face Width (FW) 10.00 mm
- Type Hubbed
- 17.00
- 20.00
- Locking Method Pinion Type
- Hardness Unhardened
- Quality N8 (JIS B 1702-1)
- Material Carbon Steel S45C
Product Compliance and Data
Additional Resources
Cross References
- G015B015M1100050PCCHK
