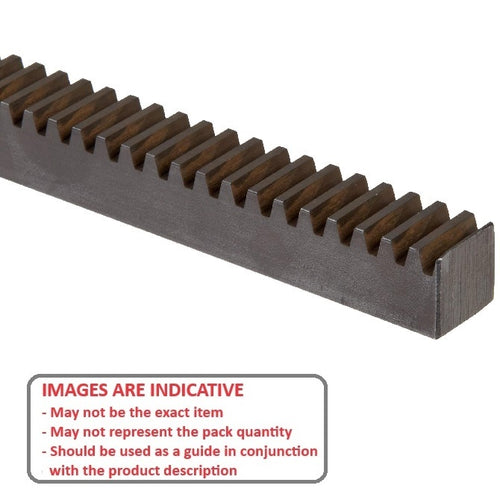

GR-D16-19-0610-19-C - Datasheet
MBA
Category Information
Gears - Rack - Imperial - 16DP - SteelSteel 16DP Imperial Rack Gears. 14.5 Degree Pressure Angle. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- 16 DP. Approx 4.99mm between teeth.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L)
:
610
mm
+ 0 / - 0.127
(Equiv. 24.016 in.) - Face Width (fw)
19.10
mm
+/- 0.254
(Equiv. 0.752 in.) - Height (h)
19.10
mm
+ 0 / - 0.127
(Equiv. 0.752 in.) - Pitch Type 16DP + 0 / - 0.025
- Pitch Height (ph) 17.45 mm
- Pressure Angle 20 °
- Precision Precision
- Mounting Holes None
- Shape Square
- Material Carbon Steel
