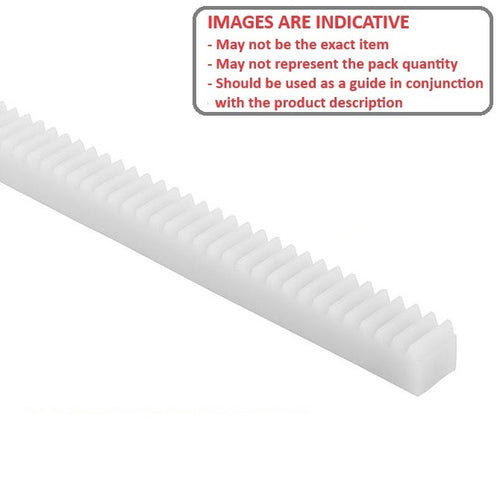

GR-M125-10-0250-11-A - Datasheet
MBA
Category Information

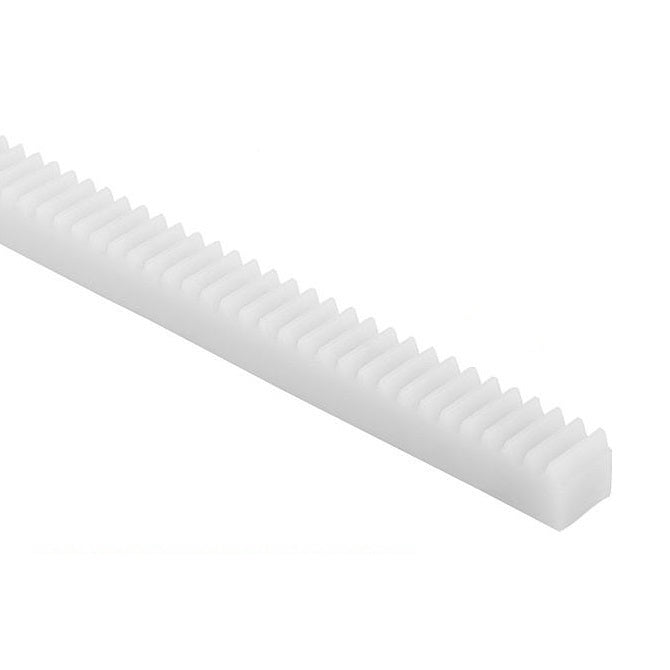

Gears - Rack - Metric - Module 1.25 - PlasticPlastic Module 1.25 Metric Rack Gears. 20 Degree Pressure Angle. Acetal.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L)
:
250
mm
(Equiv. 9.843 in.) - Face Width (fw)
10.000
mm
(Equiv. 0.394 in.) - Height (h)
11.000
mm
(Equiv. 0.433 in.) - Pitch Type Module 1.25
- Pitch Height (ph) 9.750 mm
- Pressure Angle 20 °
- Precision ISO 8 (AGMA Q9)
- Mounting Holes None
- Shape Rectangular
- Material Acetal - Moulded
Product Compliance and Data
Additional Resources
Cross References
- A1M12MYZ1225
