ECB-0171-0222-S15 - Datasheet
MBA
Category Information

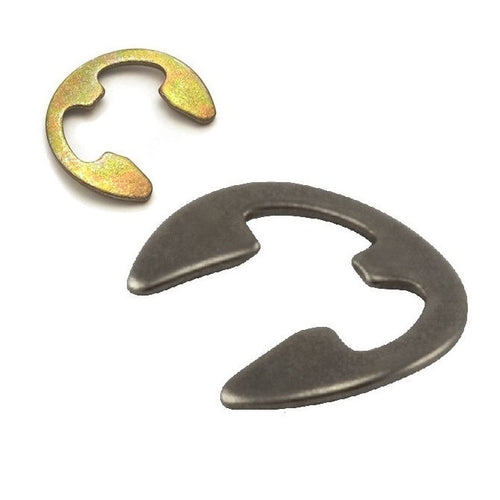

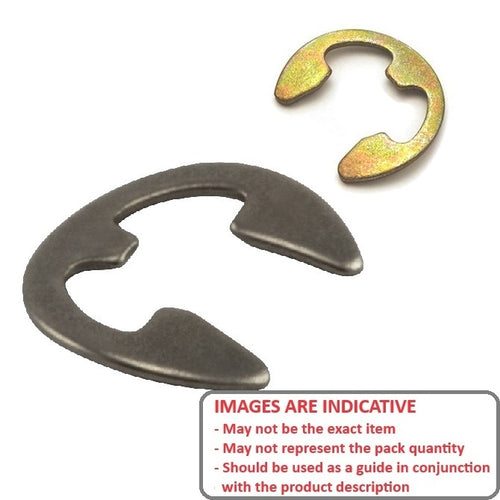

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.
Product Data
- Minimum Rec. Shaft Dia (S)
:
22.23
mm
(Equiv. 0.875 in.) - Groove Dia. (Dg)
17.15
mm
+ 0.102 / - 0.000
(Equiv. 0.675 in.) - Clip Thickness (T)
1.27
mm
+/ - 0.051
(Equiv. 0.05 in.) - Clip OD Loose (D1) 33.02 mm
- Groove Width (W) 2.16 mm
- Ring Width (X) 2.29 mm
- Force Required to Flatten 53.6 kg
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- N15010087KSF
- N1501-0087KSF
- S73KW2-131-87
- S73KW213187
