ECB-0123-0159-S15 - Datasheet
MBA
Category Information

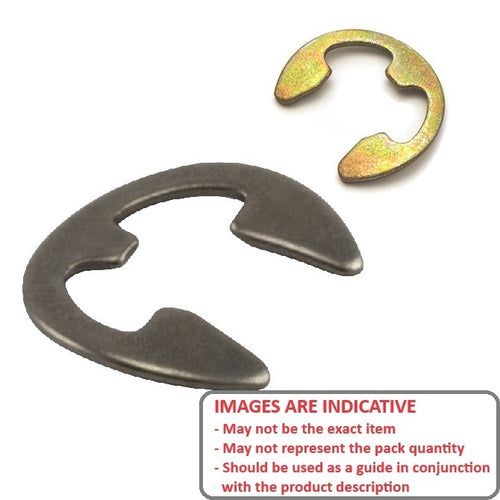

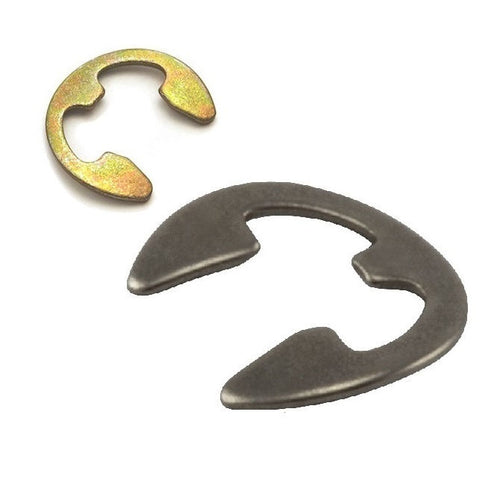

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.
Product Data
- Minimum Rec. Shaft Dia (S)
:
15.88
mm
(Equiv. 0.625 in.) - Groove Dia. (Dg)
12.32
mm
+ 0.102 / - 0.000
(Equiv. 0.485 in.) - Clip Thickness (T)
1.27
mm
+/ - 0.051
(Equiv. 0.05 in.) - Clip OD Loose (D1) 23.88 mm
- Groove Width (W) 1.96 mm
- Ring Width (X) 2.03 mm
- Force Required to Flatten 37.9 kg
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- N1501-0062KSF
- N15010062KSF
- S73KW2-131-62
- S73KW213162
