ECB-0101-0127-S15 - Datasheet
MBA
Category Information

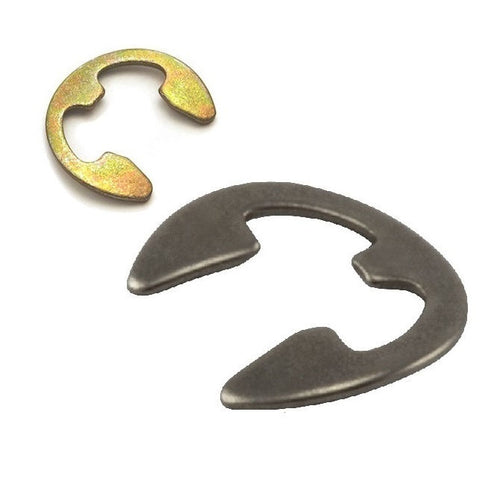

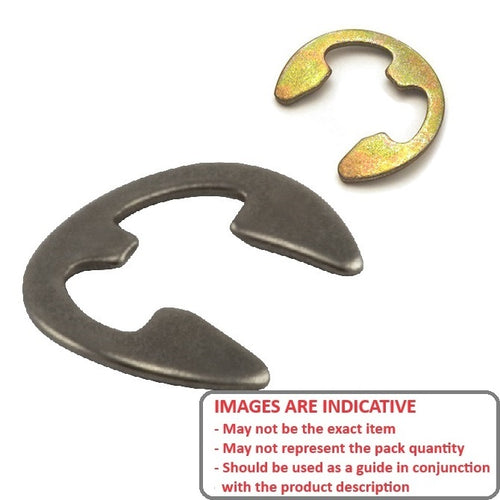

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.
Product Data
- Minimum Rec. Shaft Dia (S)
:
12.70
mm
(Equiv. 0.5 in.) - Groove Dia. (Dg)
10.06
mm
+ 0.076 / - 0.000
(Equiv. 0.396 in.) - Clip Thickness (T)
1.07
mm
+/ - 0.051
(Equiv. 0.042 in.) - Clip OD Loose (D1) 20.32 mm
- Groove Width (W) 1.85 mm
- Ring Width (X) 1.91 mm
- Force Required to Flatten 40.2 kg
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- N1501-0050KSF
- N15010050KSF
- S73KW213150
- S73KW2-131-50
