CP-030-030-08-014-H-SL-ALP - Datasheet

MBA

Category Information

Couplings - Slit - Standard

Standard Slit Couplings. Aluminium - Stainless Steel - Flexible - Zero Backlash. 0.1 to 35 Nm. 2400 to 48000 rpm.

  • An expanded range may be available on special order. Please enquire.
  • High Torsional Stiffness.
  • Zero Backlash.

Product Data

  • Bore (D1) : 3.000 mm
    (Equiv. 0.118 in.)
  • Bore 3.000 mm
    (Equiv. 0.118 in.)
  • Outside Diameter (D) 8.0 mm
    (Equiv. 0.315 in.)
  • Overall Length (L) 14.0 mm
  • Max Torque 0.1 N.m
  • Rated Speed 78000 RPM
  • Hub Type Pin Hub - Set Screw M2 (Single)
  • Angular Offset 2.0 Deg.
  • Torsional Stiffness 0.44 N.m / Deg
  • Special OEM Configuration
  • Material Anodized Aluminium
Country of Origin: JP

Product Compliance and Data

Additional Resources

    View full details

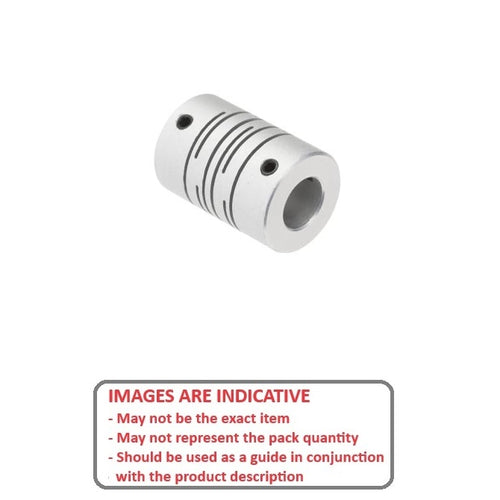

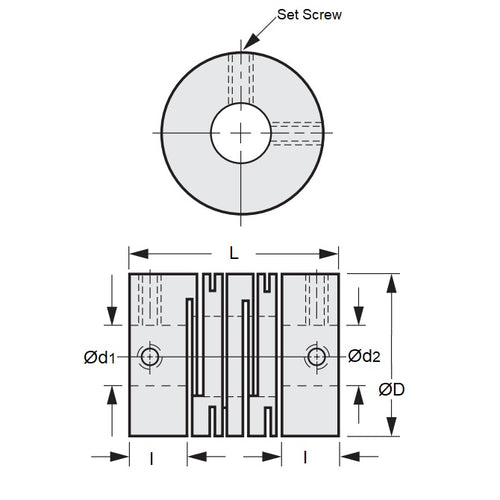

    CP-030-030-08-014-H-SL-ALPDiagramCP-030-030-08-014-H-SL-ALPImage
