COL-00800-016-06-IS-S3 - Datasheet
MBA
Category Information

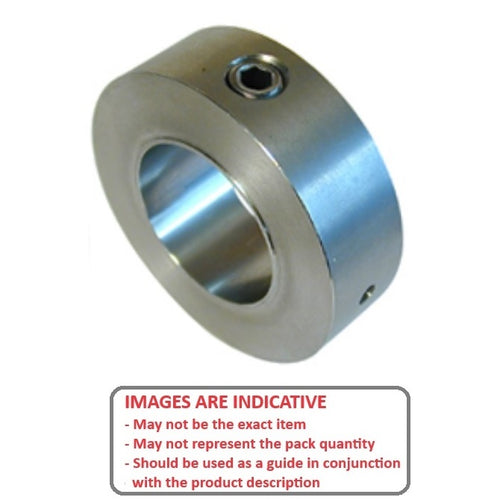

Collars - Shaft - With Integral Shim- Bore tolerance (+0.003/+0.013).
- Imperial Collars have undersized tolerances.
- Metric Collars have oversized tolerances.

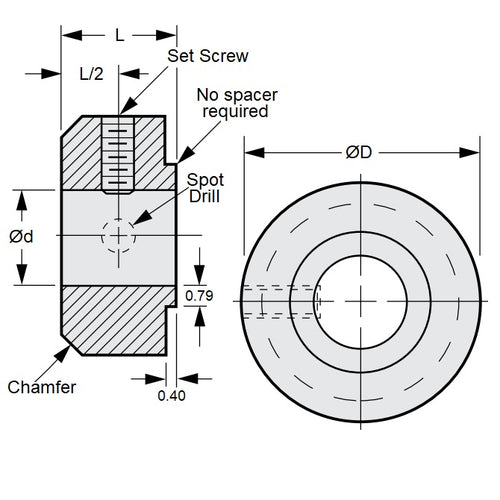

Product Data
- Shaft Size (d)
:
8.000
mm
(Equiv. 0.315 in.) - Outside Diameter (D)
16.00
mm
(Equiv. 0.63 in.) - Overall Width (S)
6.0
mm
(Equiv. 0.236 in.) - Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S25CY9MPC0816
