COL-00600-012-06-IS-S3 - Datasheet
MBA
Category Information
Collars - Shaft - With Integral Shim- Bore tolerance (+0.003/+0.013).
- Imperial Collars have undersized tolerances.
- Metric Collars have oversized tolerances.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

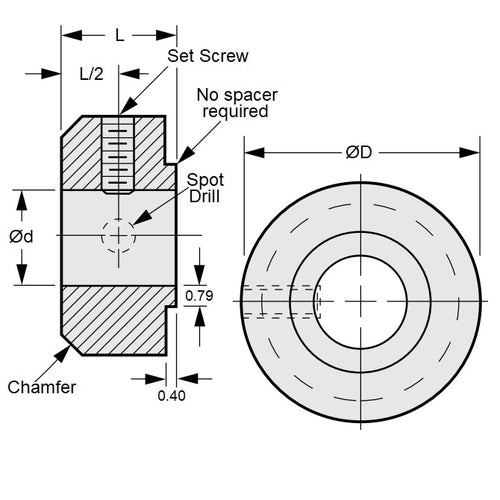

- Shaft Size (d)
:
6.000
mm
(Equiv. 0.236 in.) - Outside Diameter (D)
12.00
mm
(Equiv. 0.472 in.) - Overall Width (S)
6.0
mm
(Equiv. 0.236 in.) - Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S25CY9MPC0612
