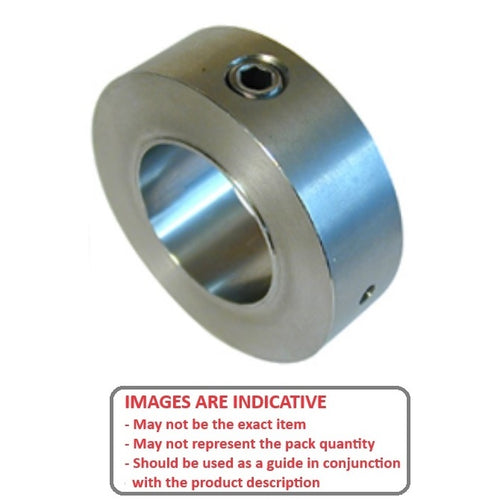

COL-03174-057-19-IS-S3 - Datasheet
MBA
Category Information
Collars - Shaft - With Integral Shim- Bore tolerance (+0.003/+0.013).
- Imperial Collars have undersized tolerances.
- Metric Collars have oversized tolerances.

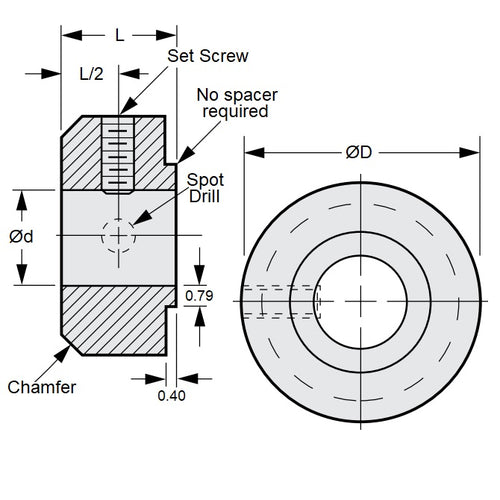

Product Data
- Shaft Size (d)
:
31.750
mm
(Equiv. 1.25 in.) - Outside Diameter (D)
57.20
mm
(Equiv. 2.252 in.) - Overall Width (S)
19.1
mm
(Equiv. 0.752 in.) - Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S25CY9PC8072
- S25CY9-PC8072
