COL-01269-025-11-IS-S3 - Datasheet
MBA
Category Information

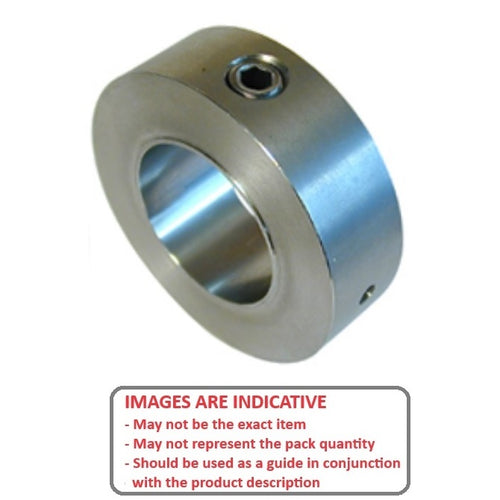

Collars - Shaft - With Integral Shim- Bore tolerance (+0.003/+0.013).
- Imperial Collars have undersized tolerances.
- Metric Collars have oversized tolerances.

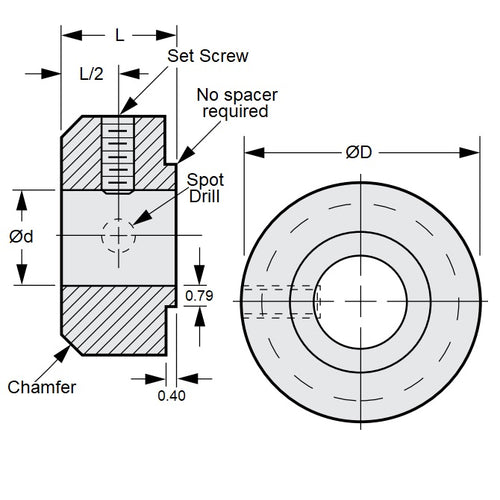

Product Data
- Shaft Size (d)
:
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (D)
25.40
mm
(Equiv. 1 in.) - Overall Width (S)
11.1
mm
(Equiv. 0.437 in.) - Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S25CY9-PC3232
- S25CY9PC3232
