COL-00900-020-10-CC - Datasheet
MBA
Category Information

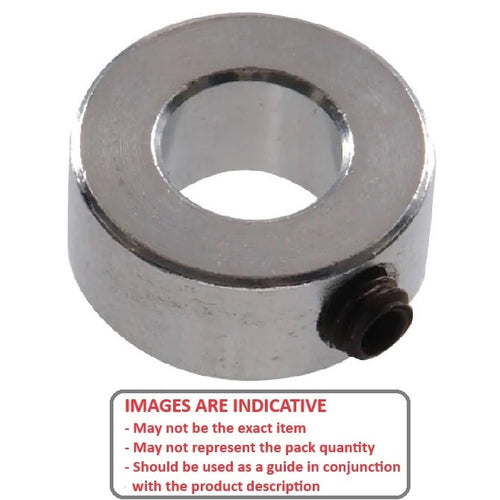

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
9.000
mm
+ 0.022 / - 0.000
(Equiv. 0.354 in.) - Outside Diameter (D)
20.00
mm
(Equiv. 0.787 in.) - Overall Width (S)
10.0
mm
(Equiv. 0.394 in.) - Collar Style Plain Collar
- Material Steel, Cadmium Plated
Product Compliance and Data
Additional Resources
Cross References
- A7Z2M120090
