COL-00794-016-09-CS - Datasheet
MBA
Category Information

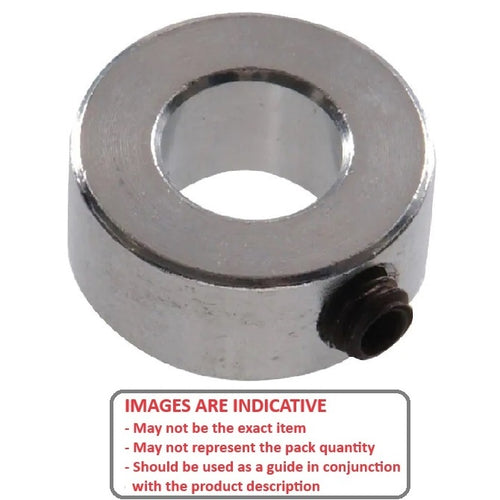

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
7.938
mm
+ 0.051 / - 0.000
(Equiv. 0.313 in.) - Outside Diameter (D)
15.90
mm
(Equiv. 0.626 in.) - Overall Width (S)
8.7
mm
(Equiv. 0.343 in.) - Screw Size 10-24 x 3/16
- Collar Style Plain Collar
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- A7C2-12010
- A7C212010
