Miniature Bearings Australia
COL-00500-011-06-CC - Datasheet
MBA
Category Information

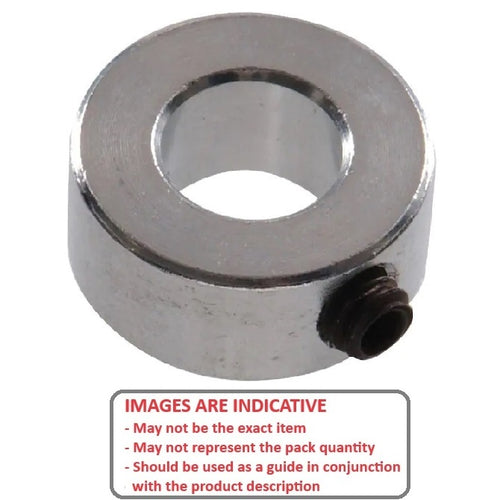

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
5.000
mm
+ 0.018 / - 0.000
(Equiv. 0.197 in.) - Outside Diameter (D)
11.00
mm
(Equiv. 0.433 in.) - Overall Width (S)
6.0
mm
(Equiv. 0.236 in.) - Collar Style Plain Collar
- Material Steel, Cadmium Plated
Product Compliance and Data
Additional Resources
Cross References
- A7Z2M111050
