COL-00318-010-06-CS-B - Datasheet
MBA
Category Information

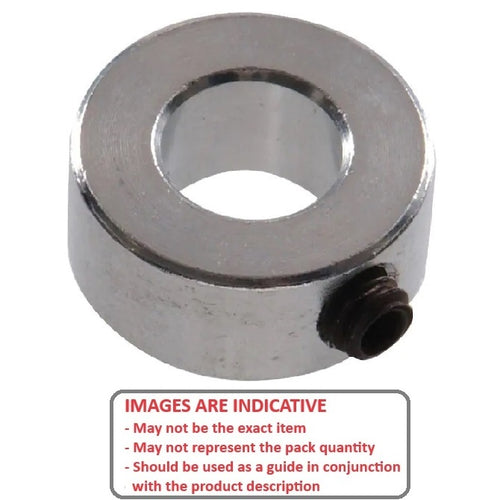

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
3.175
mm
+ 0.051 / - 0.000
(Equiv. 0.125 in.) - Outside Diameter (D)
9.50
mm
(Equiv. 0.374 in.) - Overall Width (S)
6.4
mm
(Equiv. 0.252 in.) - Screw Size 8-32 x 1/8
- Collar Style Plain Collar
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- A7C2-11204
- A7C211204
