COL-00793-014-07-S3 - Datasheet
MBA
Category Information

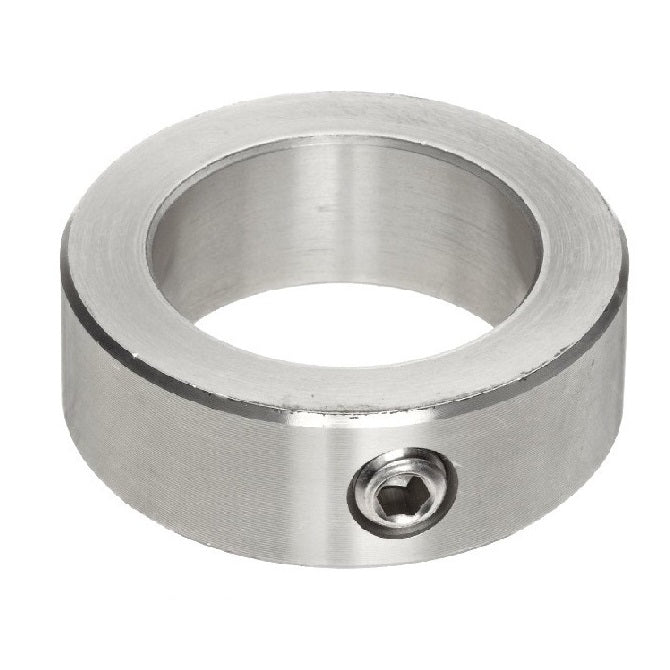

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
7.938
mm
(Equiv. 0.313 in.) - Outside Diameter (D)
14.30
mm
(Equiv. 0.563 in.) - Overall Width (S)
7.1
mm
(Equiv. 0.28 in.) - Collar Style Plain Collar - Precision
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- S5000Y-31218
- S5000Y31218
