COL-00200-009-04-S3 - Datasheet
MBA
Category Information

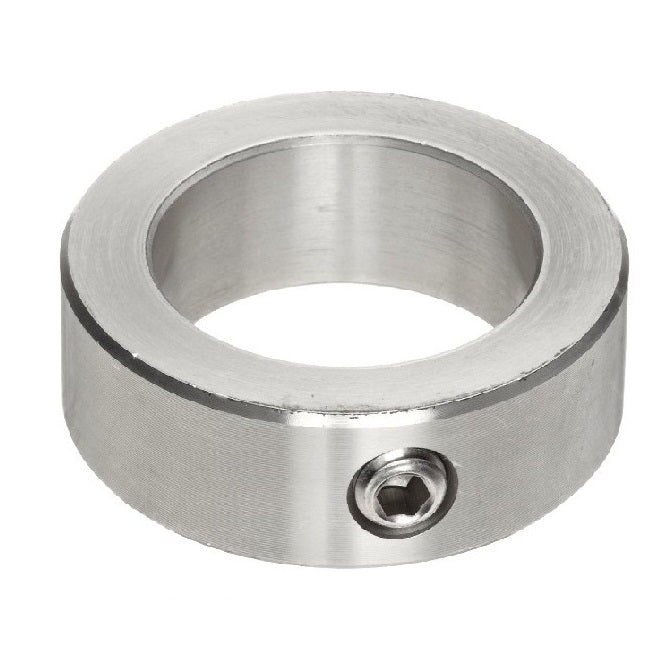

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
2.000
mm
(Equiv. 0.079 in.) - Outside Diameter (D)
9.00
mm
(Equiv. 0.354 in.) - Overall Width (S)
3.5
mm
(Equiv. 0.138 in.) - Collar Style Plain Collar
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- A7X2M109020
