COL-01588-033-11-S6 - Datasheet
MBA
Category Information

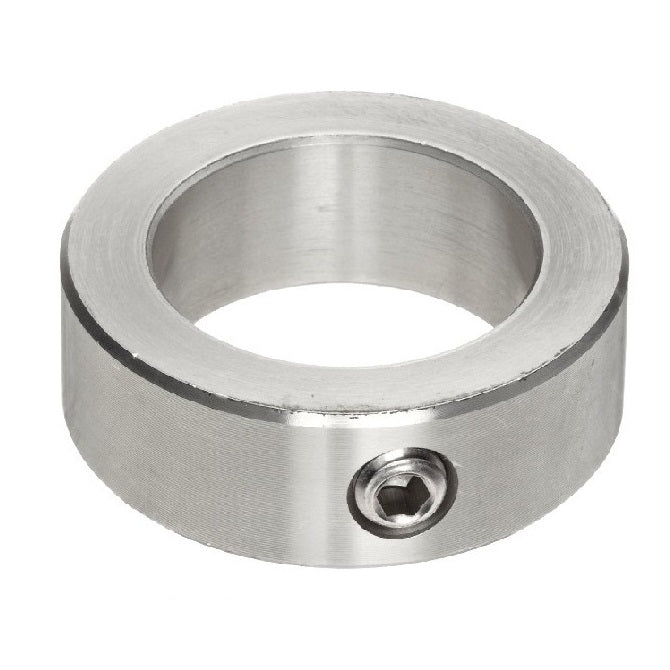

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
15.875
mm
(Equiv. 0.625 in.) - Outside Diameter (D)
33.30
mm
(Equiv. 1.311 in.) - Overall Width (S)
11.1
mm
(Equiv. 0.437 in.) - Screw Size 5/16-18
- Collar Style Plain Collar
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 6C010
