Miniature Bearings Australia
COL-01270-029-10-S6 - Datasheet
MBA
Category Information

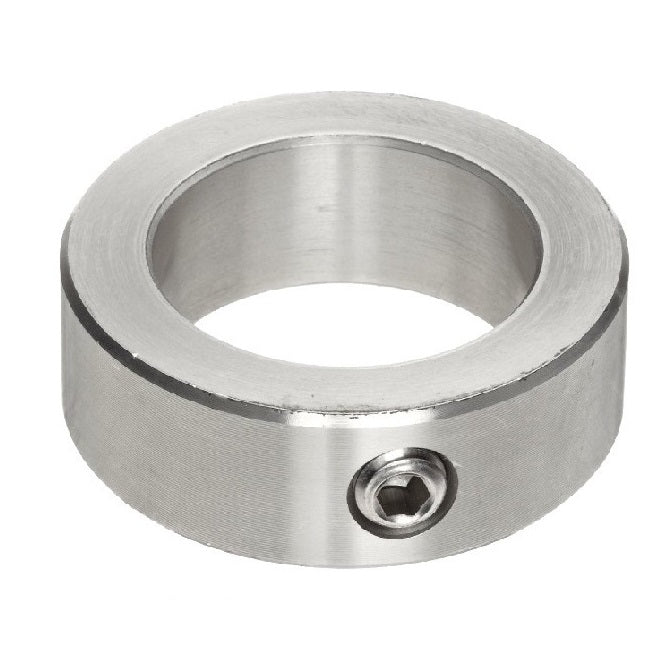

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (D)
28.60
mm
(Equiv. 1.126 in.) - Overall Width (S)
10.0
mm
(Equiv. 0.394 in.) - Screw Size 1/4-20
- Collar Style Plain Collar
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 6C008
