COL-07000-096-51-GF-AB - Datasheet
MBA
Category Information

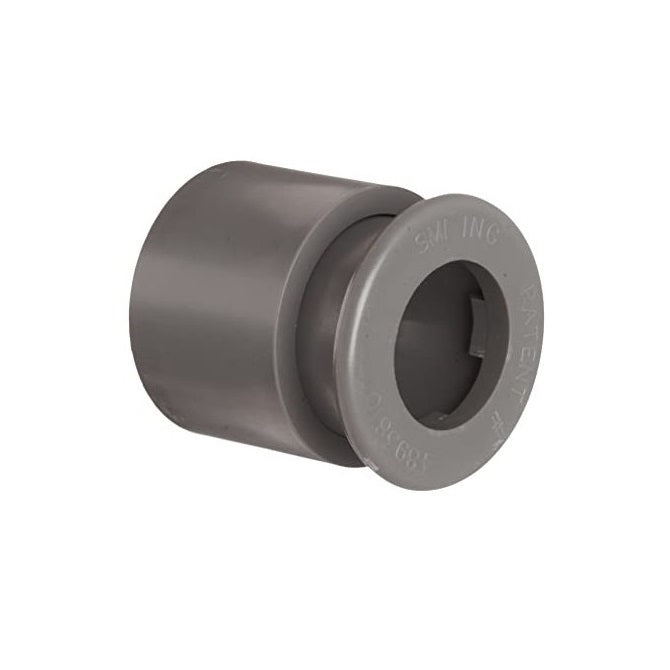

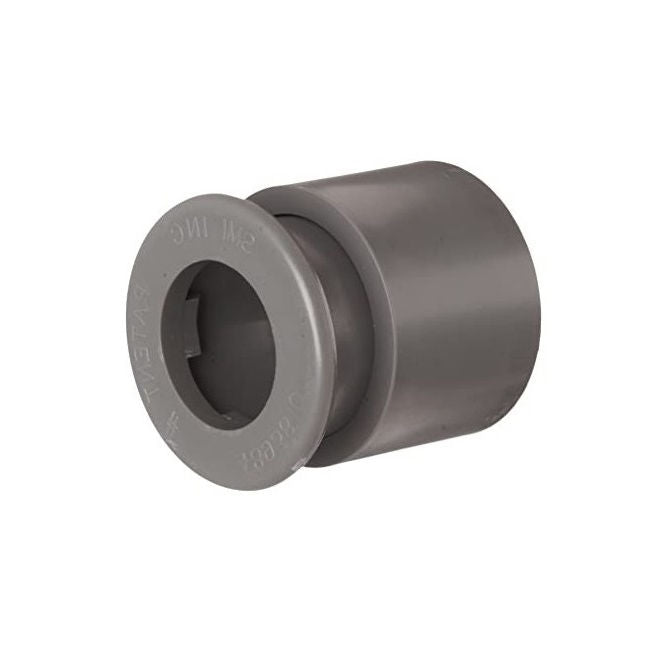

Collars - Shaft - Gripfast - ABS PlasticABS Plastic Gripfast Shaft Collars. Self Locking - Quick Release.
- 265 kg Load Capacity (600 lbs).
- ABS Plastic Inner Body and Outer Sleeve.
- Steel Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
70.000
mm
(Equiv. 2.756 in.) - Outside Diameter (D)
95.90
mm
(Equiv. 3.776 in.) - Overall Width (S)
50.8
mm
(Equiv. 2 in.) - Sleeve Length (D) 50.800 mm
- Material ABS Plastic
Product Compliance and Data
Additional Resources
Cross References
- A7Z34M2750MC
