Miniature Bearings Australia
COL-06350-085-40-GF-AB - Datasheet
MBA
Category Information

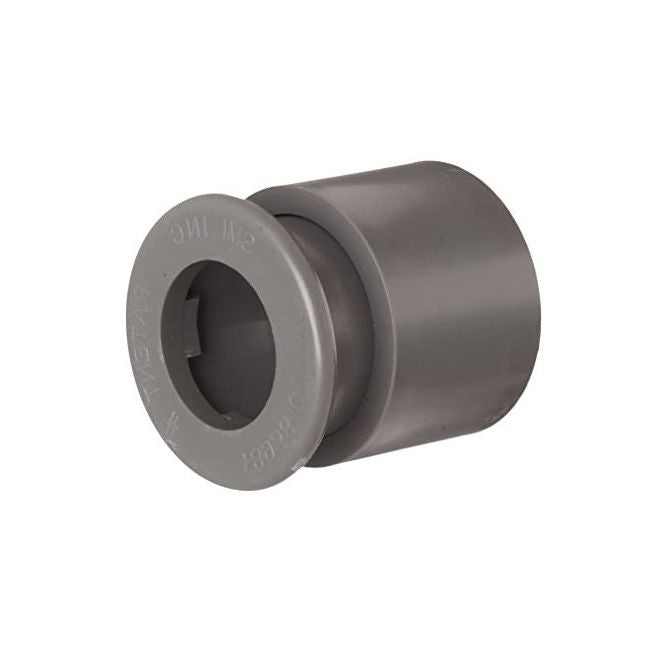

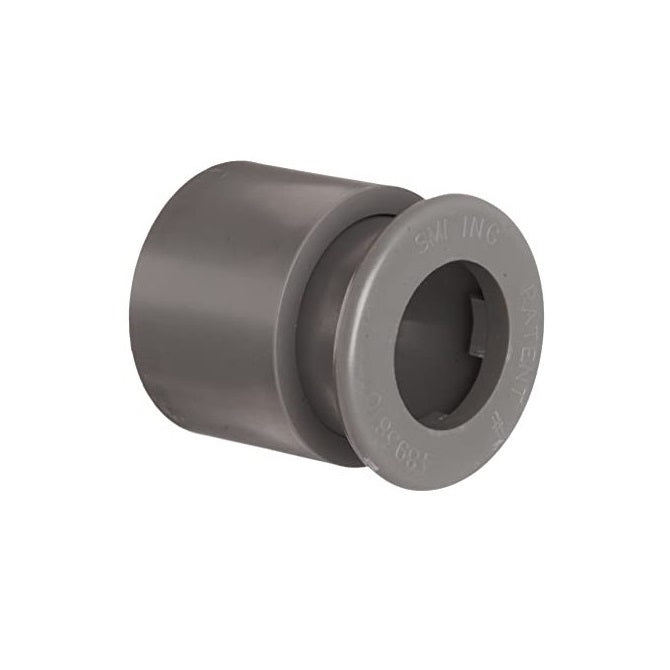

Collars - Shaft - Gripfast - ABS PlasticABS Plastic Gripfast Shaft Collars. Self Locking - Quick Release.
- 265 kg Load Capacity (600 lbs).
- ABS Plastic Inner Body and Outer Sleeve.
- Steel Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
63.500
mm
(Equiv. 2.5 in.) - Outside Diameter (D)
85.00
mm
(Equiv. 3.346 in.) - Overall Width (S)
39.9
mm
(Equiv. 1.571 in.) - Sleeve Length (D) 31.496 mm
- Material ABS Plastic
Product Compliance and Data
Additional Resources
Cross References
- A7Z34-2500SC
- A7Z342500SC
