COL-04445-069-53-GF-AB - Datasheet
MBA
Category Information

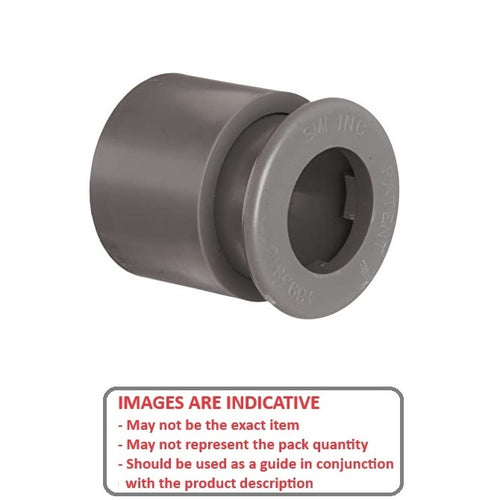

Collars - Shaft - Gripfast - ABS PlasticABS Plastic Gripfast Shaft Collars. Self Locking - Quick Release.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- 265 kg Load Capacity (600 lbs).
- ABS Plastic Inner Body and Outer Sleeve.
- Steel Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
44.450
mm
(Equiv. 1.75 in.) - Outside Diameter (D)
69.20
mm
(Equiv. 2.724 in.) - Overall Width (S)
52.5
mm
(Equiv. 2.067 in.) - Sleeve Length (D) 33.909 mm
- Material ABS Plastic
Product Compliance and Data
Additional Resources
Cross References
- COL0444506952GFAB
