COL-03500-055-46-GF-AB - Datasheet
MBA
Category Information

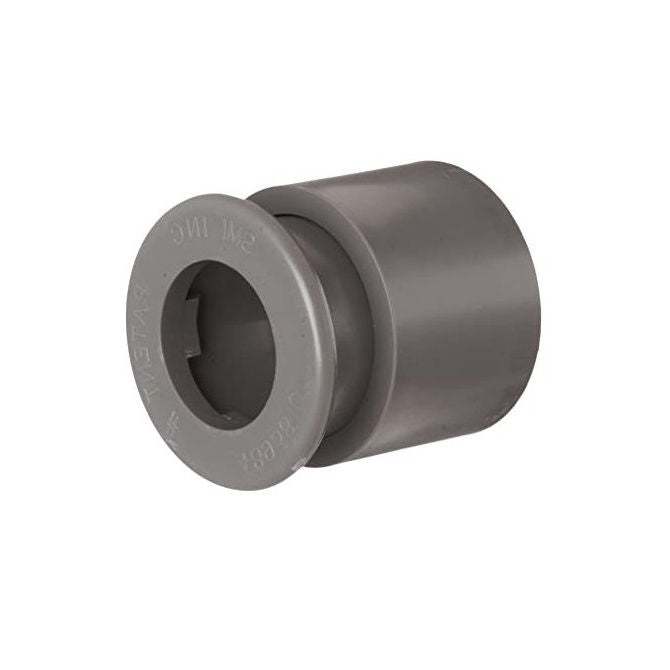

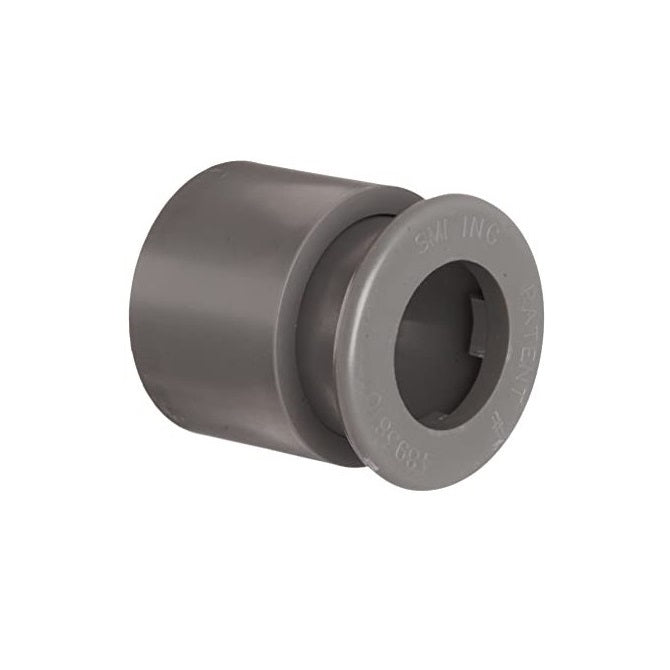

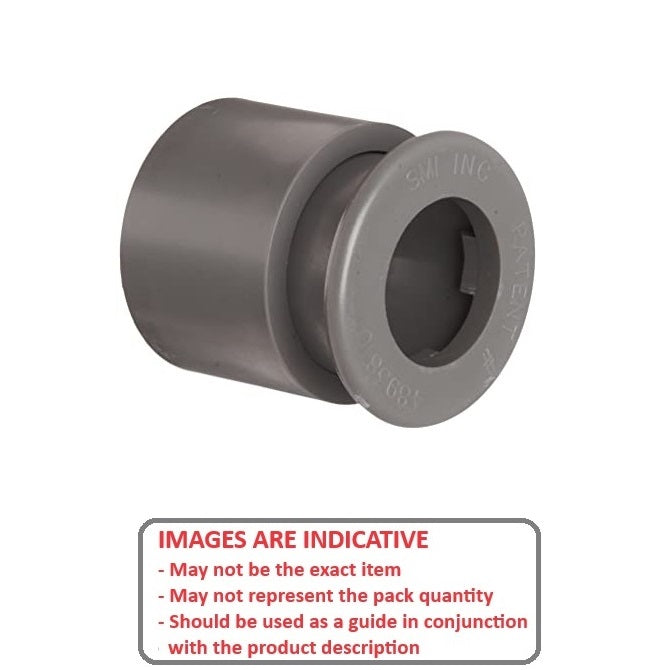

Collars - Shaft - Gripfast - ABS PlasticABS Plastic Gripfast Shaft Collars. Self Locking - Quick Release.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- 265 kg Load Capacity (600 lbs).
- ABS Plastic Inner Body and Outer Sleeve.
- Steel Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
35.000
mm
(Equiv. 1.378 in.) - Outside Diameter (D)
54.60
mm
(Equiv. 2.15 in.) - Overall Width (S)
46.4
mm
(Equiv. 1.827 in.) - Sleeve Length (D) 46.360 mm
- Material ABS Plastic
Product Compliance and Data
Additional Resources
Cross References
- A7Z34M1375MC
