Miniature Bearings Australia
COL-02900-047-51-GF-AB - Datasheet
ENQUIRE
Category Information

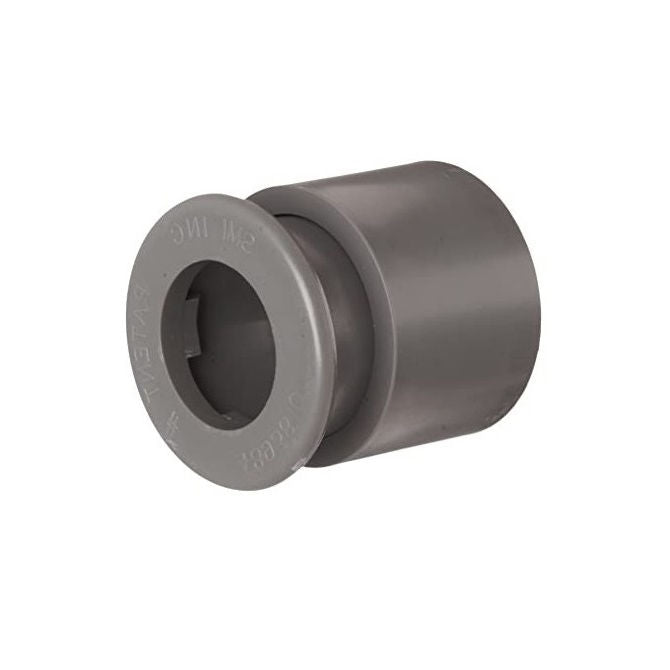

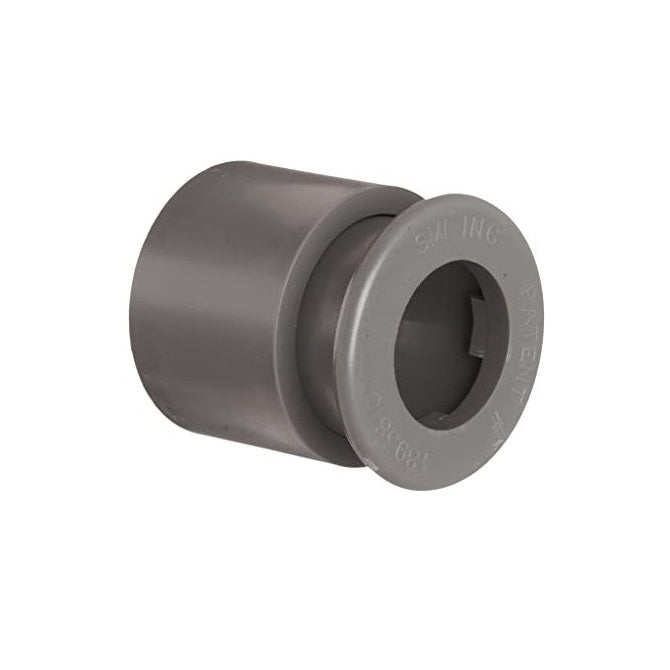

Collars - Shaft - Gripfast - ABS PlasticABS Plastic Gripfast Shaft Collars. Self Locking - Quick Release.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- 265 kg Load Capacity (600 lbs).
- ABS Plastic Inner Body and Outer Sleeve.
- Steel Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d) : 29.000 mm
- Outside Diameter (D) 47.20 mm
- Overall Width (S) 50.9 mm
- Sleeve Length (D) 50.930 mm
- Material ABS Plastic
Product Compliance and Data
Additional Resources
Cross References
- A7Z34M1125MC
