COL-01400-036-37-GF-AB - Datasheet
MBA
Category Information

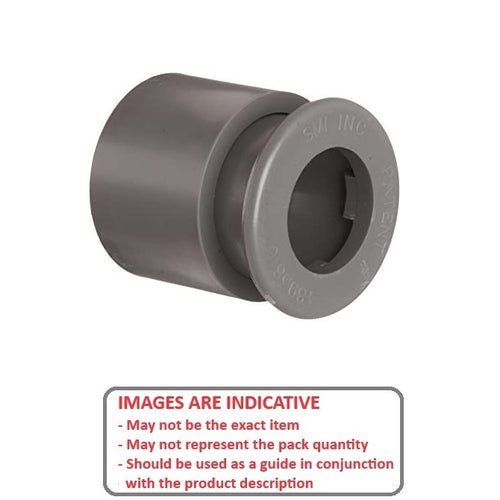

Collars - Shaft - Gripfast - ABS PlasticABS Plastic Gripfast Shaft Collars. Self Locking - Quick Release.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- 265 kg Load Capacity (600 lbs).
- ABS Plastic Inner Body and Outer Sleeve.
- Steel Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
14.000
mm
(Equiv. 0.551 in.) - Outside Diameter (D)
35.60
mm
(Equiv. 1.402 in.) - Overall Width (S)
37.1
mm
(Equiv. 1.461 in.) - Sleeve Length (D) 37.080 mm
- Material ABS Plastic
Product Compliance and Data
Additional Resources
Cross References
- A7Z34M0562MC
